Pfannenberg’s Chillers Keep Chocolate Tasting Great


Pfannenberg’s Chillers Keep Chocolate Tasting Great

Chocolate plays a major role in many of our holidays as Valentine’s Day or Easter! Whether it’s a box of chocolates or Easter eggs filled with various sweets – there is an extensive process that goes into making these enjoyable treats!

The manufacturing process of chocolate is a delicate procedure. Temperature control of the equipment and the product is important to producing a flavorful and scrumptious chocolate. All processes related to making chocolates are temperature regulated.

A major aspect of chocolate manufacturing is the conching step. Pfannenbergs’ packaged chillers are an ideal solution for the temperature regulation in this process.  Conching is the step in which the chocolate receives its flavor and smooth characteristics! At this stage, the addition of other ingredients is introduced as metal mixers/rollers mix the ingredients together.  This step generates its own heat, which is integral to keep the flavor and the proper consistency of the liquid state.  This chocolate has to be kept at average of 175°F throughout the process (temperature will vary depending on the type of chocolate).  The length of this process will vary depending on the flavor of chocolate.  Typically the average time spent conching is between 4-6 hours; gourmet chocolate brands will spend 30+ hours at this stage.

Following conching, the next step in the process is tempering.Tempering gives chocolate a distinctive shine and color; adding additional flavor.  It is crucial to have strict temperature control.  For tempering, a cooling tunnel is used to take the ambient air; cooling the air to approximately 50°F.  The air then needs to be heated to ambient air temperature.  Pfannenberg’s process chillers have been used successfully in the production of candy and chocolate.  At this stage it is crucial once again for strict temperature control.  If the temperature of chocolate begins to harden and then is heated to become a liquid state – the chocolate is ruined. For chocolate to receive its distinct flavor, look, and texture – the temperature of the chocolate and the air it is produced in is critical.

Next time you eat a piece of chocolate, be sure to appreciate the process it takes to produce such a sweet indulgence!

>> Click here to discover our complete range of chillers!


About Pfannenberg…

By keeping electronics in enclosures from overheating, Pfannenberg provides an invaluable service to companies, keeping their machinery and processes consistently operating.  By developing and producing products which are designed to save energy and other resources, Pfannenberg operates by their business philosophy – Protecting man, machine and the environment.


Topics: Cooling UnitsNorth AmericaPackaged ChillersFood & BeverageChillers

Pfannenberg’s Custom Chillers Deliver Liquid Cooling for Chemical Synthesis Reactor


Pfannenberg fits chiller into confined space within a packaged Ferrator® targeted for water and wastewater treatment in third world countries.

In their quest to develop an affordable Ferrate synthesis system, Ferrate Treatment Technologies, LLC of Orlando turned to Pfannenberg for help with developing a liquid cooling solution for a small, cabinet based system. While already using Pfannenberg chillers for larger, trailer-based Ferrate synthesis systems, standard packaged chillers were capable of integrating seamlessly within the concept of the self-contained cabinet-based Ferrator system.

The “Packaged Ferrator®”  overcomes the obstacles and high cost of using Ferrate, a highly potent oxidizing disinfectant for water and wastewater treatment. The portable Ferrate sythesis system is a game changer for delivering effective treatment for remote locations in underdeveloped nations.

The Treatment or “Cleansing” of Water Takes on Two Primary Requirements:

  • Eliminating contamination within acquired water prior to using or drinking (potable water)
  • Eliminating contamination within used water prior to its release back to the environment (waste water).

For both requirements, an element of cleansing involves disinfection which can be accomplished by several methods intended to kill, remove, or oxidize the contamination. Techniques include mechanical separation such as filtering and reverse osmosis; exposure to ultraviolet light and radiation; and the addition of chemicals such as chlorine or ozone, and now Ferrate. Each technique has its own advantages, disadvantages, effective cost ratio, and ability to scale up in order to treat the affected volume of water.

Oxidation is a process which causes chemical decomposition as well as breakdown of both organic and non-organic substances and is vital for the removal of contamination from water. As a chemical additive, Ferrate possesses extraordinary oxidation capabilities, however, it has historically been quite expensive to manufacture, which has limited its use primarily to laboratory research applications.

Luke Daly, CEO of Ferrate Treatment Technologies, LLC with the packaged Ferrator system

Attempts to produce economical and commercially viable quantities of Ferrate had seen limited success until Ferrate Treatment Technologies, LLC of Orlando (FTT) changed the game by creating a streamlined synthesis process and point-of-use production device. By eliminating storage, handling, and transportation costs associated with a pre-packaged product, FTT has cut Ferrate deployment costs by more than 85%.

The breakthrough device is called a Ferrator, initially available as a trailer or skid mounted system with various capacities targeted for water treatment applications in rural areas. The Ferrator is suitable for a variety of applications including municipal wastewater, industrial wastewater, drinking water, ship ballast water, and environmental water restoration.

Ferrate is highly effective for oxidation, disinfection, coagulation, de-watering, and deodorizing. Ferrate treatment removes phosphates and heavy metals; kills spores, bacteria, viruses and protozoa; removes colors and odors; and its by products are nontoxic.


Composition of the Ferrator

The Ferrator synthesizes Ferrate on-site from three raw ingredients: iron, bleach, and caustic, which are pumped to a homogenizer and reaction chamber. The final product is a liquid which is stored in a tank. Both the reaction and storage areas require cooling, which is provided by Pfannenberg chillers.

When FTT encountered problems with units from another manufacturer they contacted Pfannenberg to provide EB 150 chillers for skid-based systems.

Due to their successful experience with Pfannenberg chillers for system based electrical enclosure cooling, FTT turned to Pfannenberg once again for assistance with a project that required a chiller to fit in a smaller scale Ferrator system into an enclosure. Initially, a CC 6301 packaged chiller was used successfully; however, new design criteria required further miniaturization and this standard packaged chiller would no longer fit. The Pfannenberg engineering team went to work on designing, building, and delivering and open frame unit based on the CC 6301 that could fit within the confines of the small Ferrator enclosure.

” Without Pfannenberg’s cooperation, full support and timely expertise, FTT could never have achieved this historic build for a major philanthropic foundation that is committed to improving the lives of impoverished people in developing countries.” -Luke Daly, CEO (Ferrate Treatment Technologies, LLC)

The small scale Ferrator is targeted for use in third world areas for the treatment of human wastewater and drinking water. Here, the efficiency of the self-contained system will permit water purification in remote areas in which there are no sewer systems, water distribution systems, or central water treatment facilities. The small size of the Ferrator permits it to be readily transported to such remote areas and even be used as a portable device for use at multiple locations. The goal is not only to reduce the adverse effects of discharging untreated wastewater to the environment, but also improve human health by reducing contamination in water available for drinking.


Click here to download the Case study in PDF

Topics: Enclosure CoolingWater CoolingPackaged Chillers

How Pfannenberg Thermal Management & Signaling Solutions Save the Holidays


Pfannenberg products ensure that manufacturing operations are up and running – especially during the holidays when many manufacturing lines are always online. Read below on just a few example applications on how Pfannenberg supports these product lines and keeps them running.

Candy Canes:

The go-to holiday candy.  As a child, they are passed out and enjoyed by many, and as adults they are necessary for almost any holiday decoration.  This peppermint candy involves very delicate care when being processed.  There are many differences in temperature to heat up or cool down – just enough that it maintains flavor and will not ruin the product quality.  All throughout the manufacturing process of candy canes, temperatures are critical.  At certain stages, the temperature needs to be increased to help form the canes, then at other parts it needs to be cooled so that it can be mixed to perfect flavor and coloring.

The sugar kneading machine is very large and very powerful.  Right after the sugary mixture is heated up and completed its first round of mixing, it is dumped onto a liquid cooling table, where the candy has its flavoring added and mixed. The amber liquid when being first mixed is heated up to around 300°F.  Once being transferred to the kneading machine, this large machine will mix in the flavoring by pushing and folding the candy – slowly cooling the product from its hot temperature. Pfannenberg’s CC Chillers can play a key role in supplying the cool liquid to the table which kneads the candy.  If the table is left uncooled or heated, it will change the look, consistency, and taste of the final product.  Not only is it crucial to have Pfannenberg Compact Chillers to cool the table, it is also import to utilize Pfannenberg’s PWS Air to Water Heat Exchangers to cool the electrical panels controlling the entire process.


Wrapping Paper:

The wrapping of gifts dates back to the ancient Chinese, but here in the US  it hit its popularity in 1917 when Joyce Clyde Hall and Rollie Hall (founders of Hallmark) decided to modernize it. Wrapping paper is a staple item.  When it comes to holidays and special occasions, there are many steps that go into the manufacturing of wrapping paper.

Artists have to create such artwork which is then etched onto copper cylinders that are bathed in a liquid bath of chromium, which galvanizes the copper to protect it from wear and tear.  From here these rolls each have a various piece of the final wrapping paper artwork.  Each color has its own roller. The paper will go through a series of various printers where it encounters the artwork on the copper rolls for the different colors.  These metal rolls need to be highly controlled with temperature.  Too hot or cold could cause the paper to stick to these rolls and cause a paper jam which leads to loss revenue and downtime. As part of a complete solution  Pfannenberg’s CC Series Chillers help to control the temperature to the print rollers and Pfannenberg’s Air to Water Heat Exchangers provide proper cooling for the control equipment operating these large machines. To complelent our full product line,  Pfannenberg’s Signaling products are needed at every stage of the manufacturing process to alert employees of a problem. Pfannenberg’s Signaling Solutions help the employees to be able to hear and see exactly where the problem is occurring (which machine) and what problem is occurring (what action is need).

Wrapping paper leads to the excitement and mystery of the gift. Without the proper cooling and operation of the equipment that are used to produce the paper, it would be difficult to wrap the gifts.  Pfannenberg aids in the manufacturing process of wrapping paper.


Champagne:

The holiday season concludes with celebrating New Years.  New Years is a time to reflect on the past and perhaps try new things in the upcoming year. Celebrations are had with friends old and new, and champagne is typically the drink of choice. One crucial aspect in champagne manufacturing is the inspection and bottling stages of the process. The champagne bottle undergoes many cleanings and inspections prior, during, and after bottling.  Each stage will monitor and check various aspects.  The final inspection step will make sure that the champagne bottle is not cracked or damaged and to check the champagne to make sure that there are not fragments of cork or metal casing. A bright light will shine through the bottles where a machine will scan and take pictures for an employee to monitor/double check that the inspections are all being passed.

Pfannenberg has proven experience in working directly with food and beverage inspection OEMs to provide complete engineering solutions for the cooling of x-ray tubes and the internal cavity of their inspection machines. The Pfannenberg team has come up with a complete solution to utilize a CC Chiller in conjunction with a small PWS Air to Water Heat Exchanger to cool the x-ray tubes and internal cavity.  By combining products and eliminating a compressor based air conditioning unit, the Pfannenberg liquid cooling solution requires less maintenance and is far more cost effective by eliminating dependencies on different competing products and eliminating downtime.

Understanding the Different Types of Liquids Used in Chillers for Cooling Processes

With manufacturing space at minimum, machine packages have become smaller and liquid cooling has emerged as the most efficient and economical means of removing process heat. Chillers often are the only method of providing sustainable efficiency & reliability performances in “hostile” environments.

A chiller uses a refrigeration cycle to remove the collected heat from a circulating liquid. As the liquid moves through a system of tubes and pipes, it absorbs the heat generated by equipment and processes. This generated heat is then transferred by the liquid back to the chiller where it is dissipated. Fluid is cooled and sent back into the system.

>> Click here to learn more about Closed Loop Liquid Cooling Solutions.

But even if you determined that Liquid Cooling is the right solution for your environment, how do you know which heat transfer fluid you should use?

Liquids Used to Cool Your Processes

Pfannenberg process chillers offer different types of liquids to cool your processes as Water/Glycol mix, Water, and Specific Oils. Pfannenberg always recommend to use the water/glycol mixture as it’s the best way to “Protect Man, Machine and the Environment”.

1/ Glycol-Water Mixture

It is recommended to use a Water-Glycol
mix when freeze protection is needed, for example if the chiller is placed outdoors.

Ethylene & Propylene Glycol coolants, with proper corrosion inhibitors are available with Pfannenberg’s Packaged Chillers – both full strength and pre-mixed.

We typically recommend the use of Propylene rather than Ethylene Glycol, even though Propylene has less heat transfer capability, as it is more environmentally friendly and much safer to use.

Using Glycol for indoor applications is also recommended as it deters scale and corrosion in the system and provide some lubrication to the chiller pump while protecting metals. Outdoor applications need more Glycol depending on the maximum low ambient the chiller may see. The addition of Glycol does bring capacity of the chiller down slightly.

The Glycol to Water ratio is different depending on the customer’s coolant temperature needs as well as ambient temperatures being indoor or outdoor applications.

2/ Water

Depending on your installation, water cooling can be a good alternative as it is an economical and energy efficient solution. Water can be used from a local source (city water), but it is recommended to make sure that the water used is not high in mineral content which can cause corrosion or clog fluid channels. To avoid damaging the components, filtration is always encouraged.



Other types of acceptable water are: Reverse Osmosis Water (RO) and Dionized Water (DI)

  • RO Water is a purified water where 90-99% of most contaminants are removed but not all ionically disolved substances.
  • DI Water is water that is passed through a DI reaction chamber and has all its ions removed so all the impurities, salts or minerals that can cause corrosion are extracted.

Deionized water can sometimes be requested by customers, but it can still be damaging to certain materials and cause corrosion due to its high purity level. Indeed, due to the lack of ions, the water wants to attract ions from everything it touches. DI systems therefore require acid and caustic for regenerations and a neutralization system – which uses harsh chemicals – for the wastewater.

If highly pure water is not mandatory, RO water is a better option as the filtering process is not as defined as DI water.

In all cases, it is always recommended to contact a water treatment specialist for supervising or performing the installation and operation of water purification equipment.

3/ Oil

Cooling with oil is dedicated to very specific applications in which the process liquid is an oil or an emulsion with a high viscosity. Pfannenberg’s EB Chillers allow the maximum cooling capacity in the smallest possible footprint.

These chillers are designed to handle the oil entering the evaporator at higher temperatures than in typical processes. This solution is mainly used for recirculated cooling of machinery, hydraulics, automation components, etc.





Properly selected equipment is key to cooling efficiency

Whatever your industry, selecting the best packaged chillers to meet the demanding requirements of your industrial applications can be complicated. For that reason, Pfannenberg designed a 6 step guide to help you select the best chiller depending on your environment, process and type of application.

Click on the picture to open the PDF or use this link!




Have a question regarding which equipment is best for your application? Ask Us Here.


Topics: Enclosure CoolingPackaged ChillersChillers

Chillers for X-Ray Machines – A Food & Beverage Success Story


With the next round of Food Safety Modernization Act (FSMA) updated regulations taking into effect September, food processing companies are scurrying to make sure their facilities are up to code. The newest set of updates will support efforts into the quick responses to food/beverage related emergencies (contamination, expired products, recalls, and foreign materials). The new amendments also require that the FDA inspect the food production facility every two years to make sure that the facility and products adhere to all regulations.

A simple first step into maintaining food processing safety is x-ray/inspection equipment for product safety and making sure the machines operate properly.  In making sure these machines operate properly, one has to make sure that they have the proper thermal management equipment; something in which Pfannenberg has extensive experience in.

Success Story

Pfannenberg worked directly with a food and beverage inspection OEM to provide complete engineering solutions for the cooling of x-ray tubes and the internal cavity of their inspection machines. These machines would end up in various food & beverage and pharmaceutical end use facilities.  Before meeting with Pfannenberg our customer used several different competing thermal management products; conventional cabinet air conditioners to cool the machine cavity, two small internal fans to move the air around and a small chiller. It was costly, cumbersome while leading to additional maintenance costs and condensate issues.

The Pfanneberg team came up with a solution to utilize a CC Chiller in conjunction with a small PWS Air to Water Heat Exchanger to cool the x-ray tubes and internal cavity.  By combining products and eliminating an air conditioning unit, the Pfannenberg option required less maintenance and was more cost effective eliminating dependencies on different competing products.


Click Here To read, “The Technology of Cooling Part 4: Closed Loop Liquid Cooling Solutions”.


Have a question regarding which equipment is best for your application? Ask Us Here.

Click here to learn more about Pfannenberg’s CC series chillers.

Topics: Air Water Heat ExchangersPackaged ChillersFood & BeverageChillers

Liquid Cooling Solutions, the Best Choice for Complete Plant-wide Machine Cooling


When it comes to Thermal Management, cooling each machinery or electrical cabinet separately is usually the solution chosen by most of the industries. However, this leave a valuable optimization potential untapped.

Maximum efficiency cooling for a whole system can be achieved with a cooling system solution consisting of air to water heat exchangers and water-based chillers. These ‘Liquid Solutions’ cool the complete assembly and offer significant benefits compared to traditional approaches such as cooling with ambient air.

How does it work?

A closed loop cooling or semi open system is used to provide cooling to the entire plant assembly. These might be electrical enclosures, processes or individual machine parts such as spindles, motors or hydraulic equipment.

Liquid Cooling Solutions

In a closed-loop system, electrical enclosures or assemblies are cooled with cold water at a specified inlet temperature which is pumped through a pipe system. Flowing through the electrical enclosures or assemblies, the water is warmer when it returns to the chiller. This creates a temperature delta which the chiller equalizes by cooling the water from the outlet temperature down to the inlet temperature.

The process chiller system feeds cold water into the application inside the factory hall or outdoors and the constant flow temperature significantly improves machine availability and machining accuracy. There is no other cooling media being as efficient as water cooling.

The best Liquid Cooling Solution: Combined Chillers and Air to Water Heat Exchangers

The combination of application-specific process chillers with air to water heat exchangers is particularly suitable for applications in which heat must not be dissipated in the immediate environment, where the ambient air is too aggressive to allow the use of traditional enclosure cooling units, where high-level protection is required (up to IP 65) or where the cooling devices must be maintenance-free.

The air to water heat exchanges are all cut-out-compatible and fit in the housing of all available electrical enclosures. This means that machine and plant manufacturers, end users and distributors benefit from higher flexibility, and save costs on warehousing and servicing.

The advantage of an intelligent system solution with application-specific chillers and air to water heat exchangers is that the dissipated heat can be moved directly from the factory shop floor via air channels or an outside chiller system. It also offers very high reliability and problem-free operation as all the components of the system are chosen to work together perfectly. Low maintenance, cut-out-compatibility and energy efficiency optimize energy consumption and keep operating costs to a minimum. The integrated concept and numerous options allow the system to be adapted to almost any application, even with changing conditions.

Application-specific configuration

Pfannenberg’s experts work with their customers to develop application-specific chiller systems. To achieve exactly the right configuration, it is essential to:

  1.  First determine the heat load for the whole assembly.
  2. The second step is to specify the type of cooling medium (ideally water), the target temperature and the flow quantity which the system must deliver in the actual application. This process should take into account how the heat is transmitted to the cooling medium and the type of refrigerant necessary to operate the refrigerant circuit. The type of cooling medium and which chiller model is used depends on whether usable process water is available at the factory and if so, whether it is warm or cold (see overview of device variants).
  3. An analysis of the environmental conditions prevailing where the chiller system is to be installed is also carried out. For example, there might be high temperatures and contaminated air indoors, while outdoors the temperature might fluctuate widely. Both of these factors can have an impact on the configuration of the chiller system, making accessories such as filter fans or crankcase heating necessary. Taking the temperature of the cooling medium at the inlet and the highest likely ambient temperature as a basis, Pfannenberg determines the best chiller model with the correct characteristic curves for the job.
  4. The final stage in the application-specific configuration is to think about whether the selected standard version meets the other requirements of the application, such as performance data, control and regulation options, available space, certifications and color. It is then decided whether standard options are necessary or helpful and if so, which. With numerous available options available, the EB chillers meet the requirements of practically any application in industrial environments.

Pfannenberg offers installation-ready chiller systems with performance specifications ranging from 1 to 160 kW. The modular concept of the EB series allows users to select from up to 30 standard options. These include hydraulic bypass/relief valves, flow monitors, tank level monitors, air filters, air filter monitors, check valves, solenoid valves, single alarm display and UL certification. Special solutions are also available. Click here to determine the correct chiller for your application!


With products that include filterfans, heaters, industrial air conditioners, air to water heat exchangers, packaged chillers, and signaling devices, Pfannenberg offers a full range of thermal management solutions for all types of industries. Standard options such as stainless steel materials, NEMA 4/4X enclosures, and washdown duty construction allow these time-tested products to be seamlessly incorporated into even the most demanding applications.

Have a question regarding which equipment is best for your application? Ask Us Here.

Topics: Air Water Heat ExchangersEnclosure CoolingThermal ManagementWater Cooling,Packaged ChillersChillers

Pfannenberg Process Chillers used for Cooling Edge Banding Machines


Duravit is a leading manufacturer of porcelain bathroom fittings, making top-grade bath furniture at their Schenkenzell site. Pfannenberg was contacted to replace a 12 year old process chiller for the subsystem switchgear cabinets used with their edge banding machine.


Needs Assessment

Duravit consulted with their engineering firm for advice on upgrading their equipment. This same engineering firm was also a  Pfannenberg Competence Centre (PCC) partner. Pfannenberg business development manager for chillers was brought in on-site to meet and review the necessary requirements to cool both the cabinet and machinery.

At the end of this process the decision was clear: a Pfannenberg EB 60 WT packaged chiller with a custom configuration was the ideal solution for cooling the switchgear cabinets used with the edge banding machine.

“We already had some Pfannenberg process chillers in use at various places in the Schenkenzell plant. When the existing unit for our edge banding machine had to be replaced, it was clear that we needed a new solution. In the end we chose the energy-efficient chiller solution from Pfannenberg due to our good experience with them in the past.”

Reliable cooling capacity


The edge banding machine in Duravit’s Schenkenzell plant runs about 4,500 passes a day.The edge banding machine feed unit glues edging to bath furniture. With double-sided gluing and four sides to be handled, each item passes through the machine twice – and thousands of items are processed per day.

Due to high dust levels in furniture manufacturing, a closed-circuit cooling system with water refrigerant is the ideal solution for thermal management of switchgear cabinets. In the summer the ambient temperature can rise to 40°C when bright sunlight shines through the glass roof of the Schenkenzell factory building.

This makes a reliable, high-performance cooling solution especially important. The EB 60 WT unit has a rated capacity of 6 kW and delivers a continuous flow of chilled water. The water is used to cool the electronic components inside the switchgear cabinets distributed over the 50m length of the machine, including variable speed drives and controllers. The modular switchgear cabinets are integrated into the machine as pull-out subcabinets.

Individually adaptable and easy to service

A special feature of Pfannenberg’s EB series is their modular architecture, which makes them easy to adapt to individual applications. In addition, Duravit opted for an special high-performance pump with rated pressure up to 5 bar, instead of the standard 3 bar with 35 litre flow volume in 50 Hz operation.

The chiller’s flow monitor keeps an eye on how much water is flowing through the cooling circuit, and the thermostat measures the water temperature.

If the cooling water flow is too low (risk of condensation) or the refrigerant temperature is too high (risk of overheating), the chiller sends an alert to the machine’s operator console so that damage to the electronic components of the edge banding machine can be avoided and high machine reliability can be achieved.

The refrigerant tank is also monitored by a sensor so that service personnel are informed promptly when the tank needs refilling. Pressure sensors monitor the air flow through the inlet filter. This enables preventive maintenance and reduces the need for wear parts.

The alerts are made possible by chiller’s ability to exchange control signals with the edge banding machine through the Harting connectors. The HMI display makes EB 60 WT operation convenient for users, who can also view fault messages and causes on the display.

“A decisive factor for us was that the EB 60 is very easy to maintain. For example, the filter mats only have to be cleaned every two to three weeks, despite the high dust level. The unit was installed six months ago, and we haven’t had to replace the filter mats yet. Thanks to the various alerts, we can perform preventive maintenance to increase our machine availability”

Modular and energy-efficient chiller technology

In a closed-circuit system, switchgear cabinets or electronic components are cooled by pumping cold water at a defined supply temperature through the switchgear cabinets in a pipe system.
After passing through the switchgear cabinets, the water flows back to the chiller at a higher temperature (return temperature). The chiller removes the temperature difference by cooling the water from the return temperature back to the supply temperature.

Pfannenberg offers chiller solutions covering the capacity from 1 to 70 kW, using water or oil as the refrigerant. Particularly in combination with air/water heat exchangers, water chillers (WT) provide an ideal system solution because all cooling task in a plant or machine can be implemented easily and economically using a closed-circuit pipe system.

The modular design of the EB series gives users a choice of up to 30 standard options, including UL certification. Good access from all sides enables easy and efficient maintenance. All components are rugged and top quality. In addition, Pfannenberg’s chiller is an especially energy-efficient chiller with load-based speed control that can reduce energy consumption by about 40% compared to the standard series.

“The Pfannenberg unit is top quality. You just switch it on and it works. It was delivered quickly, and the sales team put a lot of effort into it. The entire process was very smooth”


Pfannenberg is a global manufacturer of products and solutions developed to keep critical plant operations online and personnel safe.

Click here to get more information about Pfannenberg’s range of Chillers!

Protecting Man, Machine and the Environment… since 1954.

Topics: Packaged ChillersChillers

Using Chillers to Help Make Pasta

Pasta – A staple in Italian cuisine that can be found in almost every household. It is a food that carries memories and conveys emotions.


Making Dried Pasta: A Delicate Process

Pasta is a noodle that is made from water and flour (eggs and other ingredients can be added for various flavors) – it has a simple composition, but the process requires a lot of love and patience. Pasta is classified under two broad categories: dried and fresh – from there it is classified by various shapes, sizes, flavors and ingredients.

In the United States, there has been an increase in buying trends for ready-made meals and easy to prepare foods. Dried pasta falls under both categories, but also has a strong nutritional composition – containing various vitamins and nutrients. Pasta takes many different shapes and sizes. Making dried pasta is a delicate process, it can easily tear and get ruined.  Ingredients are first mixed, extruded and dried, then taken to be packaged and shipped – all important steps into delivering a sought-after product.

Using a Chiller to Cool the Pasta Extruder

An important manufacturing step in the dried pasta making process is the use of an extruder. Pfannenbergs’ packaged chillers are an ideal solution for the temperature regulation in this process. At the extrusion phase the pasta is given it’s distinct shape and size. This is the step in the process that classifies the pasta style, from angel hair and bow tie to lasagna and spaghetti.  Depending on the type of pasta that is desired, the dough is either pushed through dies or rolled out and cut.  Many types of dried pasta are commercially reproduced through this extrusion process.

The extrusion machine can mass produce large amounts of pasta to be dried. As the pasta enters the extruder it is approximately 95 °F (35 °C). As the pasta is pressed through the extruder there is an increase in the product temperature due to the friction of the pasta being forced out. A chiller is used to cool the water jacket built within the extruder to maintain an ideal exit temperature of 115 °F (45 °C). Anything warmer than this leads to a different consistency and risk of damage to the product.

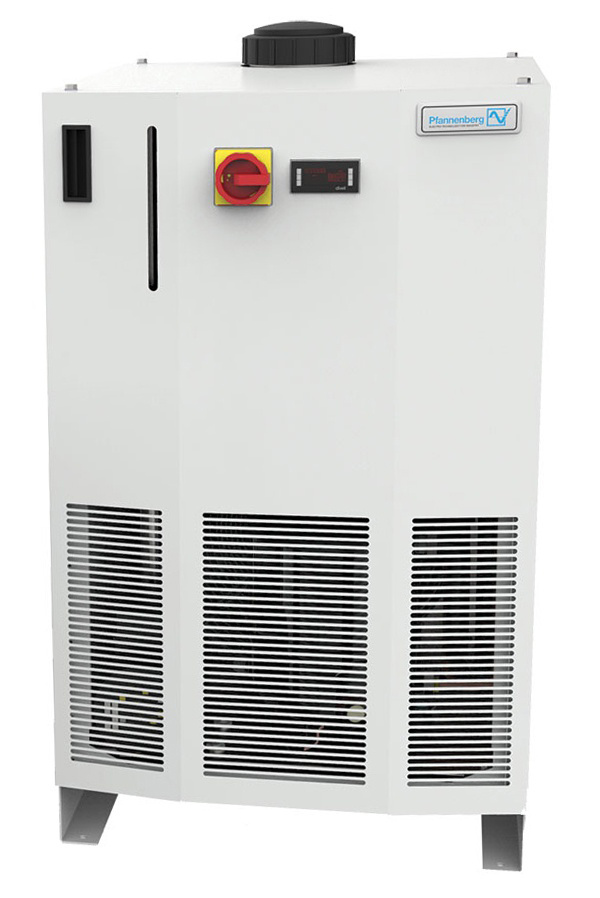

Our Pfannenberg CC chiller series are used for this extrusion process globally. It’s compact design, ease of use and durability allows for integration within the OEM equipment.

We would all love to make our own fresh pasta at home, but with today’s busy lifestyle having a box of dried pasta in your cupboard is a staple for a quick meal.  Next time you cook your pasta in a pot of hot boiling water, remember its the cooling needed in the process to help make this delicious meal possible.


Have a question regarding which equipment is best for your application? Ask us here!




Pfannenberg’s Process Chillers Meet the Most Demanding Food & Beverage Applications


Pfannenberg Liquid Solutions – Now That’s Cool™

Designed for today’s food-processing environment, EB Series  and CC Series Chillers feature stainless steel pumps and evaporators, non-ferrous water circuits, and a polyester-epoxy blend powder-coat finish.  Stainless steel or aluminum casing panels are available.  Our outdoor-rated construction provides flexibility for remote installation requirements.

EB Series:

  • In recirculated cooling loop applications, our unique combination of thermal storage and refrigerant gas bypass technologies allows operational flexibility.
  • Refrigerant capacity control reduces thermal storage volume resulting in a smaller footprint, lower operating weight, and lower coolant costs.
  • Supply water temperature stability is easily achievable for close tolerance applications and higher energy efficiency.
  • Once-through configurations are also available for cooling water, liquid ingredients or products prior to packaging. This arrangement features FDA recommended liquid contact surface materials and optional CIP connections for easy maintenance.
  • NEMA 4, UL-listed control panels and state-of-the-art microprocessor based controllers are standard equipment providing safety, ease of use and service.
  • Options include remote control and communication systems, casters for portability, and status signal lighting.

CC Series:

  • Hermetic compressor with R-134a refrigerant.
  • Peripheral pump with a wide flow & pressure range.
  • Stainless steel brazed plate evaporator.
  • Non-ferrous coolant circuit.
  • Hinged front panel allows full access to interior for service.
  • Microprocessor-based electronic controller.
  • UL & CE approvals.

Generous evaporator and condenser heat transfer surfaces maximizes efficiency and tolerance to fouling to provide low operating costs and trouble-free operation – even in the most demanding food and beverage environments.

Topics: Cooling UnitsNorth AmericaPackaged ChillersFood & Beverage

Pfannenberg Food & Beverage Applications: Air/Water Heat Exchangers

The Complete Liquid-Cooled Solution for F&B Industrial Control Enclosures

For over 50 years Pfannenberg has been a leader in thermal management solutions.  From simple Fan Cooling and Packaged Air Conditioners to more complex water cooled applications, our expertise helps ensure industrial electronics operate at peak efficiency and extended service life.

Pfannenberg’s Air/Water Heat Exchangers offer a solutions to fix your thermal management problems in washdown areas of the plant or areas with high amounts of particulate . The sealed cabinet provides contaminant-free component cooling without adding heat to the local environment.  It provides an excellent economic solution where plant water is available or when used in conjunction with a process chiller.  It’s sealed design and available stainless steel, NEMA Type 4/4X construction provides a maintenance free solution with no exposed fans or maintenance of filters required.

Typical Food and Beverage Applications:

  • Ingredient Mixers
  • Product Cooling/Drying
  • Packaging Automation Equipment
  • Inspection Machines
  • Oven Controls

For applications which require local enclosure cooling using a remotely located source of refrigeration, PWS Series Air/Water Heat Exchangers provide the perfect solution.  Paired with our CC or  EB Series Chillers, the air/water heat exchanger provides a total cooling solution that manages process and/or control enclosure heat gain and effectively removes it from the processing area.  Single source responsibility for the complete system ensures properly matched components that are engineered to work together – and to provide a custom fit to the most complex food processing equipment.


Topics: Air Water Heat ExchangersEnclosure CoolingCooling UnitsThermal ManagementNorth AmericaWater CoolingPackaged ChillersFood & Beverage
