Enclosure Cooling for Commercial Bakeries – Easy As Pie


The two most important characteristics of creating a great tasting pie are the filling and the crust.  For the filling, fruit is mixed with sugar, cinnamon, honey and other spices (depending on the type of filling) in a large sauce pan. Ingredients are heated and mixed to combine the flavors for the filling.

In today’s modern lifestyle, frozen foods have played a major role in providing convenience to customers.  Pies – a family fall favorite, often take time that many families do not have. This is the time of the year where kids are back to school, parents are running all over doing drop-offs and pick-ups, rushing to work; taking the time to bake or make a full meal is often difficult.  Large industrial bakeries can manufacture roughly 200,000 frozen pies a day.  There is a high demand in this modern age for this aspect of convenience.

This process requires automation components such as VFDs in large electrical control panels to operate the system. Heat is a by-product of this process and Pfannenberg’s PWS Air to Water Heat Exchangers are ideal for cooling electrical components. Pfannenberg’s Air Water Heat Exchangersutilize chilled water, that is readily available, and an internal fan to provide cooled air preventing critical electronics from overheating. These units are particularly adapted for harsh environments like bakeries when there’s flour everywhere.



These pies are then moved to the depositing machine, where the filling is then dropped into the pie sheets.  The lid of crust is then placed on the filled fruit pie.  These lids are mass produced and “forked” or sealed to give that touch as if it was just like our mothers or grandmothers homemade pie. These top crust lids help seal in the filling when the pie is being baked at home.  Once sealed, the pies are moved to a blast freezer for rapid chilling.

Once chilled the pie is then moved to be packed and shipped off to local grocery stores.To make that flakey-buttery crust, shortening, flour, and other ingredients are mixed together in a large industrial mixer.  When the dough is done being mixed, the dough is compressed into equal sized squares and dropped into baking pie sheets.  Here, they move along the process and the dough squares are pressed down on the pie sheets to form the bottom crust layer.

The manufacturing processes of frozen pies are a delicate procedure. Temperature control of the equipment and the product is important to producing a flavorful, flakey, and scrumptious pie crust. So what will it be?  One slice or the entire pie?  Ice cream or whipped cream? Next time you are enjoying a piece of pie, be sure to appreciate the process it takes to produce such a delicate indulgence!


Click Here to download the Bakery Air to Water PWS Case Study.


Join us at ProFood Tech 2017 which will take place in Chicago, IL from April 4-6, 2017!

Be sure to stop by Booth #1847 to learn more about our products!


Be sure to follow our Food and Beverage LinkedIn Showcase Page!

Topics: Air Water Heat ExchangersThermal ManagementNorth AmericaFood & Beverage,Bakery

Prevent Summer Overheating with Pfannenberg Enclosure Cooling Solutions


Preventing enclosure overheating in the summer can be a challenge for many factories, where temperatures can rise fast during hot days! The high summer temperatures are often the cause of overheating of electrical components located inside the enclosures reducing their lifespan, while also contributing to downtime and repairs.

When this happens, the user often makes the same mistake: open the door panel (and sometimes use a fan) to remove heat and cool the components.

In doing so, they allow dust, oils and surrounding debris to get inside the cabinet risking the damaging of sensitive electronic components.

To ensure that sensitive electronics maintain their rated life expectancy and that they function reliably, proper regulation of the enclosure climate is necessary.

Determine the Proper Enclosure Thermal Management

Electronics are typically most efficient in an environment where the humidity is low and the temperature is approximately 95°F. As the temperature in an enclosure rises it can have a lasting effect on the electronics. Tests have shown that an increase in temperature of as little as 18°F shortens the life expectancy of electrical components by more than 50%.

Enclosure Climate control prevents critical temperature fluctuations, avoids overheating and protects against the formation of condensate. It is essentially the backbone of your entire production process, prolonging the life of your electronics and protecting your investment.

To choose the best Thermal Management Solution you first need to understand your environment. Indeed, the environment in the electrical enclosure can be affected by weather conditions, solar radiation or other external temperature sources.

As an example, An Air to Water Heat Exchanger will be adapted to an enclosure placed in a factory that faces hot weather spikes or an extremely dirt or caustic environment compared to traditional industrial air conditioners.

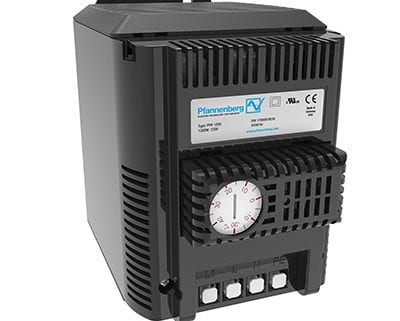

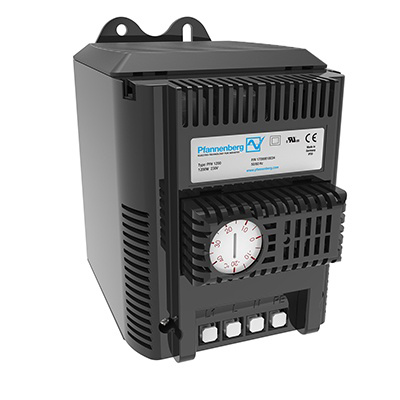

Electronics sensitive to electromagnetic interference may need a shielded EMC Filterfan®. An enclosure located outdoors or in a humid environment may require hygrostats or thermostats and heaters to eliminate the formation of condensate, leading to corrosion and short circuiting.

Pfannenberg Sizing Software (PSS)

To determine the proper thermal management solution, Pfannenberg Engineers developed a powerful web-based Sizing Software to help you configure Filterfans™, cooling units, air/water heat exchangers, and heaters for electrical enclosures. The easy to use interface, works for both indoor and outdoor applications and helps you calculate the heat dissipation in a cabinet, component by component.

Need more help choosing the best Enclosure Cooling Solution? Chat with our Support Engineers or Ask us a question!


Pfannenberg, Inc. is a global manufacturer of Thermal Management, Liquid Cooling Solutions and Signaling Technologies.

Pfannenberg is proud to provide solutions as a single source to its customers. Our business philosophy – Protection for man, machine and the environment

Topics: Enclosure CoolingThermal Management

“We All Scream for Ice Cream” – Pfannenberg’s Thermal Management plays a key role in a favorite summer treat!


From the Farm to the Factory

When the trucks arrive at the factory, the milk and cream are pumped into storage silos and kept cool at 36°F until they are ready to begin the process.

Making the Ice Cream Mixture

The process begins by mixing ingredients and various flavors into a 1000-gallon stainless steel blender.  Heavy cream, liquid sugar cane, and condensed skim milk are the first foundational ingredients. After that, sometimes egg yolks and cocoa powder are incorporated depending on the desired flavoring. A natural stabilizer is mixed in to prevent various ice crystal formation or heat shock.  Blended for a total of about 6-8 minutes, it is then ready to be transferred and strained into a large tank.  This tank will store the mixture until it is ready to begin the pasteurization process.

Pasteurization & the Homogenizer

Pasteurization heats up the mix to kill harmful bacteria. The mixture flows through various plates. Hot water flows on one side of the plate and cold water (cold mix) flows on the other side of the plate. The heat from the hot water is transferred to the ice cream mix, heating this mix up to 180°F.

Right from there, the mixture enters the homogenizer.  Here the mix is exposed to high amounts of pressure so that the fat particles from the cream do not separate from the rest of the mix.  Then the heat from the ice cream mix is transferred to the cold water, cooling the ice cream mix down to 36°F.

The mix is then moved to a tank room.  This room is cooled down to 36°F degrees, where the mix will be stored for 4-8 hours which allows the ingredients to really form.  Next more flavorings are mixed in (such as vanilla, peppermint, purees, and other extracts).  Once the appropriate flavors are added it is then transported into the freezer.  The temperature has to be below freezing, most plants keep it at -40°F.

Freezing & Packaging

To further the process in making hard ice cream, it travels to the packaging area of the factory.  Here the soft serve ice cream is dispensed into various packaging containers and then delivered into the storing freezer before shipment. At this point the temperature of the mixture is around 22°F. For the mixture to reach a colder state it has to enter a spiral freezer where it travels around in a -60°F maintained temperature part of the plant.  When the ice cream leaves the spiral freezer it should be around -10°F. From there the ice cream cartons are stored into various freezing warehouses until they are shipped.


So what role does Pfannenberg play in this desired product?

Automation plays a critical role in the manufacturing of ice cream. Numerous electrical enclosures contain the critical electronics (VFDs and control components) to operate the machinery ranging from mixing to the final packaging. Even though these enclosures are found within a relatively cool environment, the temperature inside the cabinets needs to be maintained. Without proper enclosure cooling these electronics may overheat, bringing operations to a halt. Pfannenberg’s PWS Air to Water Heat Exchangers are ideal for cooling electrical components found in food and beverage processing facilities. The units can utilize existing cooled liquid while saving energy costs vs, traditional compressor based AC cooling units. Our cooling solutions make this cool summer treat possible.


Be sure to visit us at IBIE 2016 in Las Vegas, NV — October 8th-11th at Booth #9247 to learn more about our closed loop liquid cooling solutions.

Be sure to follow our NEW Food and Beverage LinkedIn Showcase Page!


Topics: Air Water Heat ExchangersThermal ManagementFood & Beverage

Pfannenberg Products Assist in Making an American Staple Summer Treat


Hot dogs – a staple summer treat that brings back memories of family cookouts and baseball games. It is an American favorite summertime food! Hot dogs go through a series of complex processes that combine the ingredients into their delicious final form and Pfannenberg’s PWS Air to Water Heat Exchangers are perfect to keep things running.

Meat Processing

The first step into creating one of the most loved foods is the preparation of the meat.  The meat is cut into small pieces and is placed into a large mixer.  These mixers have chopping blades to further cut the meat into smaller sizes. Here the raw ingredients and flavorings are added.  All are mixed until the mixture is a smooth paste consistency. Processes like this can require large control panels to operate the system and Pfannenberg’s PWS Air/Water Heat Exchangers are ideal for cooling your electrical components. Pfannenberg’s Air/Water Heat Exchangers utilizes chilled water, that is readily available, and an internal fan to provide cool air to prevent critical electronics from overheating.

Linking

The paste is always going through inspections throughout the entire process. After inspection from the mixer – the mix is moved into a stuffer.  This machine will push the paste into tube casings.  The casings are twisted at measured sections to make equally sized hot dogs. There are various casings – natural or artificial. The shaping of the hot dogs we all know is now complete.

Smoking

After the stuffing and linking, the hot dogs are then moved to a smokehouse to cook under controlled conditions.  Manufacturers can control the temperature and the difference flavors that the smoking has on the hot dog by using difference smoke sources.  Average time it takes in this step is an hour.

Final Processing

Once the smoking is completed, the link casings are removed by an automatic peeler.  During this time, the hot dogs are sprayed with water to help bring down their temperature.  Then the hot dogs are then transported to be packaged. Before going into the final packaging, the hot dogs are inspected to make sure there are no foreign ingredients in the product.

Pfannenberg has experience with inspection and x-ray equipment. Pfannenberg was able to combine a Chiller and PWS Air to Water Heat Exchanger to cool the x-ray tubes as well as the electrical enclosure as one example.

The packaging machines can process thousands of hot dogs in an hour.  They are operating at very fast speeds and require proper thermal management cooling to keep their machines up-and-running. Once packaged, hot dogs are inspected again, freshness dates are added, and they are all boxed up to be transferred to the warehouse for refrigeration until they are shipped. The entire process from start to finish, only takes a few hours.


Click Here to read “Chillers for X-Ray Machines – A Food & Beverage Success Story”.


Be sure to follow our NEW Food and Beverage LinkedIn Showcase Page!

The Technology of Cooling Part 3: Cooling with Closed Loop Cooling Units


Pfannenberg cooling units operate on the principle of the Carnot cycle. This means that the cooling units function as a heat pump that “pumps” the thermal energy transferred from the electronic cabinet (heat dissipated from the components) up to a higher level of temperature (the ambient temperature can reach levels as high as + 55 °C). The air inside the enclosure is cooled down by the evaporator and at the same time dehumidified.

How do I know if a cooling unit is the right product for my application?

  • If the ambient temperature is greater than the target internal temperature of the enclosure, active cooling is required.
  • If indoor NEMA Type 12 applications, NEMA Type 3R/4 outdoor applications and NEMA Type 4/4x stainless steel for washdown applications are required – closed loop cooling can maintain the NEMA Type rating of the cabinet.

Properly sizing a cooling unit

To properly size your cooling units you must know the required cooling capacity in Watts, mounting requirements (side, integrated or top mount) and the dimensions of the cooling unit and enclosure.

Utilizing performance curves to properly size cooling units:

> Pfannenberg utilizes the DIN standard 35/35 °C when rating our cooling units.

> Many other companies use 50/50 °C, which provides a higher, non-usable value. Customers should use their own application temperatures to determine the proper cooling capacity of the system.








Important information when utilizing cooling units:

  • The refrigeration capacity should exceed the dissipation loss from the installed components by approximately 10%.
  • The enclosure should be sealed to prevent the inflow of ambient air.
  • Use the door contact switch to impede operation with open doors and consequent excessive accumulation of condensation.
  • Use cooling units with maximum clearance between air inflow and air outflow to prevent poor circulation.
  • Make sure that the air inflow and air outflow in the external circuit is not hindered, preventing proper heat exchanging at the condenser.
  • When using top-mounted cooling units, make sure that components with their own fans do not expel the air directly into the cooling units cool air outflow.
  • Make sure unit is level.
  • Setting the temperature to the lowest setting is not the optimal solution due to the condensation issues. The value we have preset on the cooling unit is a sound compromise between cooling the inside of the enclosure and the accumulation of condensation.

In harsh environments involving high temperatures, wash-down requirements, heavy particulate matter or the presence of chemicals capable of damaging components (NEMA 4 or 12 environments), ambient air must be kept out of the enclosure. Pfannenberg Cooling Units seals out the ambient air, cooling and re-circulating clean, cool air throughout the enclosure.

Pfannenberg offers Critical Thermal Management Solutions for Maximum uptime and efficiency.

Find the previous articles of this “Technology of Cooling” serie: Cooling with Filterfans® and Cooling with Closed Loop Air to Air Heat Exchangers.

Read the last part of this “Technology of Cooling” serie: Closed Loop Liquid Cooling Solutions



Topics: Enclosure CoolingCooling UnitsThermal Management

The Technology of Cooling Part 2: Cooling with Closed Loop Air to Air Heat Exchangers


Closed Loop Cooling and particularly Air to air heat exchangers are used when the complete separation between the enclosure and the environment is required and the internal enclosure temperature to be cooled can be higher than the ambient. The air to air units have a rating showing how much heat can be removed based on the difference in the ambient and the internal temperatures. This is traditionally rated on W/°C which is the watts of heat that the unit can remove per temperature difference in °C.

How do I know if an air to air heat exchanger is the right product for my application?

  • If the ambient temperature is lower than the desired temperature inside the enclosure.
  • If a total separation between ambient air and enclosure air is required.

Properly sizing an air to air heat exchanger

To properly size an air to air heat exchanger you must know the required cooling capacity in Watts, target temperature rise over ambient and the dimensions of the heat exchanger and enclosure.


Utilizing performance curves to properly size air/air heat exchangers:

> Pfannenberg utilizes watts of heat that the unit can remove per temperature difference in °C.

Customers should use their own application temperatures to determine the proper cooling capacity of the system.



Important information when utilizing air/air heat exchangers:

  • The max ambient is 35 °C (95 °F) and the max internal temperature that the system can take is 45 °C (113 °F).
  • Can be used when the temperature difference is 10 °C.
  • If you apply this temperature difference to the rating of the air to air unit you will get the total amount of heat that can be removed.
  • A unit rated 100 W/°C could remove 1000 Watts (100 x 10) of heat under these conditions.

Closed Loop Cooling with air to air heat exchangers is the most efficient cooling solution as cooling with ambient air is the most economical type of cooling!

Pfannenberg εCOOL Air to air Heat Exchangers feature an energy efficient, minimal maintenance design. Installation and maintenance of these units requires much less time compared to other closed loop Thermal Management solutions.

Click here to read the 1st part of this “Technology of Cooling” serie: Cooling with Filterfans®
Click here to read the 3rd part of this “Technology of Cooling” serie: Cooling with Closed Loop Cooling Units

Topics: Enclosure CoolingCooling UnitsThermal Management

Download Pfannenberg’s NEW 2016 Thermal Management Catalog!


We are excited to announce the release of our NEW NORTH AMERICAN CATALOG. In this catalog we take a Solutions First approach to helping you understand how to choose the best Thermal Management products for your applications.


> New sections for Engineered Solutions and Industry Group Specific Solutions.
> Shared expertise to find the best solution for any type of application and environment.
> Easily determine the correct thermal management products for your application and environment.
> New high resolution detailed product pictures with cut-aways.



Get Pfannenberg Catalog


Pfannenberg, Inc. is a global manufacturer of thermal management, water cooling solutions and signaling technology. For more than 60 years, our enclosure cooling products have been helping some of the largest companies worldwide stay cool and safe, protecting and keeping electronic equipment running to avoid costly downtime.

In addition to our thermal management products we also manufacture visual and audible signaling devices for security, industrial fire, building, industrial process, disaster warning, hazardous areas, light art and illumination. Our business philosophy – Protecting man, machine and the environment.

To learn more about how we can help you, contact us today! We have a wide range of expertise to share with you.



Topics: Enclosure CoolingThermal ManagementNorth America

The Technology of Cooling Part 1: Cooling with Filterfans®


If the installation is in a clean, non-hazardous environment with an acceptable ambient (outside the enclosure) temperature range, a simple forced-air cooling system utilizing outside air is usually adequate. Combined with an air filter, such devices generally meet the heat removal needs of typical electronic equipment and many electrical applications.


How do I know if a Filterfan® is the right product for my application?

  • If the temperature rise inside the enclosure can be higher than the ambient
  • If multiple configurations are needed. Filterfans® can be located in a number of locations within complex enclosure configurations.

Calculating the required airflow

To properly size a Filterfan® it’s important to understand how static pressure effects the performance of a fan.


Understanding CFM

CMF describes the volume flow rate of compressed air. We can define 3 different CFM:

  • CFM1: Fan Only (unfiltered)
  • CFM2: Filterfan® Assembly (uninstalled)
  • CFM3: Filterfan® Installed on an enclosure with one filtered exhaust assembly
    (Note: Always calculate cooling capacity of Filterfans® with the CFM3 value)


Utilizing Filterfans® for Enclosure Cooling

  • Always use the Filterfans® to propel the cool ambient air into enclosure.
  • Slight positive pressure builds up inside the cabinet so that only air filtered by the Filterfans® flows into the enclosure.
  • The air propelled into the cabinet displaces the warm air which exits through the exhaust filter.
  • When installing a combination of Filterfans® and exhaust filters, fit the Filterfans® in the lower third of the cabinet and the exhaust filter(s) near the top of the cabinet.

Utilization examples

CFM : Filterfan® + Exhaust Filter CFM : Filterfan® + 2 Exhaust Filters CFM : Filterfan® + intake + Filterfan® Exhaust



Part 1 of our Thermal Management Solutions, Pfannenberg’s Filterfans® incorporate modern louvers which enable maximal airflow, hold back dust/flour and water particles, protect the filter medium from damage and can be integrated into the design of the application. Filterfans are an ideal cooling solution when the ambient air is always lower than the temperature required in the electrical enclosure. This assists the natural convection of the air and avoids hot spots withing the enclosure.

Pfannenberg is the inventor of the Filterfan®, with 50 years of experience and continuous development. Trust in the Original


Read the 2nd part of our Thermal Management Tips: Cooling with Closed Loop Air to Air Heat Exchangers

Topics: FilterfansEnclosure CoolingThermal Management

Liquid Cooling Solutions, the Best Choice for Complete Plant-wide Machine Cooling


When it comes to Thermal Management, cooling each machinery or electrical cabinet separately is usually the solution chosen by most of the industries. However, this leave a valuable optimization potential untapped.

Maximum efficiency cooling for a whole system can be achieved with a cooling system solution consisting of air to water heat exchangers and water-based chillers. These ‘Liquid Solutions’ cool the complete assembly and offer significant benefits compared to traditional approaches such as cooling with ambient air.

How does it work?

A closed loop cooling or semi open system is used to provide cooling to the entire plant assembly. These might be electrical enclosures, processes or individual machine parts such as spindles, motors or hydraulic equipment.

Liquid Cooling Solutions

In a closed-loop system, electrical enclosures or assemblies are cooled with cold water at a specified inlet temperature which is pumped through a pipe system. Flowing through the electrical enclosures or assemblies, the water is warmer when it returns to the chiller. This creates a temperature delta which the chiller equalizes by cooling the water from the outlet temperature down to the inlet temperature.

The process chiller system feeds cold water into the application inside the factory hall or outdoors and the constant flow temperature significantly improves machine availability and machining accuracy. There is no other cooling media being as efficient as water cooling.

The best Liquid Cooling Solution: Combined Chillers and Air to Water Heat Exchangers

The combination of application-specific process chillers with air to water heat exchangers is particularly suitable for applications in which heat must not be dissipated in the immediate environment, where the ambient air is too aggressive to allow the use of traditional enclosure cooling units, where high-level protection is required (up to IP 65) or where the cooling devices must be maintenance-free.

The air to water heat exchanges are all cut-out-compatible and fit in the housing of all available electrical enclosures. This means that machine and plant manufacturers, end users and distributors benefit from higher flexibility, and save costs on warehousing and servicing.

The advantage of an intelligent system solution with application-specific chillers and air to water heat exchangers is that the dissipated heat can be moved directly from the factory shop floor via air channels or an outside chiller system. It also offers very high reliability and problem-free operation as all the components of the system are chosen to work together perfectly. Low maintenance, cut-out-compatibility and energy efficiency optimize energy consumption and keep operating costs to a minimum. The integrated concept and numerous options allow the system to be adapted to almost any application, even with changing conditions.

Application-specific configuration

Pfannenberg’s experts work with their customers to develop application-specific chiller systems. To achieve exactly the right configuration, it is essential to:

  1.  First determine the heat load for the whole assembly.
  2. The second step is to specify the type of cooling medium (ideally water), the target temperature and the flow quantity which the system must deliver in the actual application. This process should take into account how the heat is transmitted to the cooling medium and the type of refrigerant necessary to operate the refrigerant circuit. The type of cooling medium and which chiller model is used depends on whether usable process water is available at the factory and if so, whether it is warm or cold (see overview of device variants).
  3. An analysis of the environmental conditions prevailing where the chiller system is to be installed is also carried out. For example, there might be high temperatures and contaminated air indoors, while outdoors the temperature might fluctuate widely. Both of these factors can have an impact on the configuration of the chiller system, making accessories such as filter fans or crankcase heating necessary. Taking the temperature of the cooling medium at the inlet and the highest likely ambient temperature as a basis, Pfannenberg determines the best chiller model with the correct characteristic curves for the job.
  4. The final stage in the application-specific configuration is to think about whether the selected standard version meets the other requirements of the application, such as performance data, control and regulation options, available space, certifications and color. It is then decided whether standard options are necessary or helpful and if so, which. With numerous available options available, the EB chillers meet the requirements of practically any application in industrial environments.

Pfannenberg offers installation-ready chiller systems with performance specifications ranging from 1 to 160 kW. The modular concept of the EB series allows users to select from up to 30 standard options. These include hydraulic bypass/relief valves, flow monitors, tank level monitors, air filters, air filter monitors, check valves, solenoid valves, single alarm display and UL certification. Special solutions are also available. Click here to determine the correct chiller for your application!


With products that include filterfans, heaters, industrial air conditioners, air to water heat exchangers, packaged chillers, and signaling devices, Pfannenberg offers a full range of thermal management solutions for all types of industries. Standard options such as stainless steel materials, NEMA 4/4X enclosures, and washdown duty construction allow these time-tested products to be seamlessly incorporated into even the most demanding applications.

Have a question regarding which equipment is best for your application? Ask Us Here.

Topics: Air Water Heat ExchangersEnclosure CoolingThermal ManagementWater Cooling,Packaged ChillersChillers

Closed Loop Liquid Cooling Reduces Downtime, Maintenance & Repair Costs for Commercial Bakeries


Pfannenberg’s Cooling Solutions Help Keep Equipment Running for One of the Fastest Growing Independent Wholesale Bakers in America.

Flour is one of the paramount enemies of electrical enclosures and enclosure air conditioners, particularly in the make-up area of a commercial bakery.

 Pfannenberg is your proven partner for complex thermal management challenges in the baking industry. High security classes of equipment and corrosion-resistant construction materials resist even the most difficult ambient conditions.

Keeping the electronics cool which power the machines is essential to the entire operation of the Schwebel Baking Company. Without the electrical enclosures staying cool, the machines fail and require replacement or downtime for repair. Inside a baking facility, there is lots of dust/flour throughout the air and can clog the operating machines.

Pfannenberg’s PWS Series Air to Water Heat Exchangers were the precise solution for Schwebel’s manufacturing process. Incorporating closed loop cooling with Air/Water Heat Exchangers improved performance, reduced maintenance, was energy efficient, and prevented unplanned repairs.


Click Here to Download the Bakery Air to Water PWS Case Study.


Be sure to follow our  Food and Beverage LinkedIn Showcase Page!

Topics: Thermal ManagementNorth AmericaFood & BeverageCommercial BakeriesBakery,Case Study
