DMC 8.0
CHILLERS
27300 Btu/h / 2.3 Tons

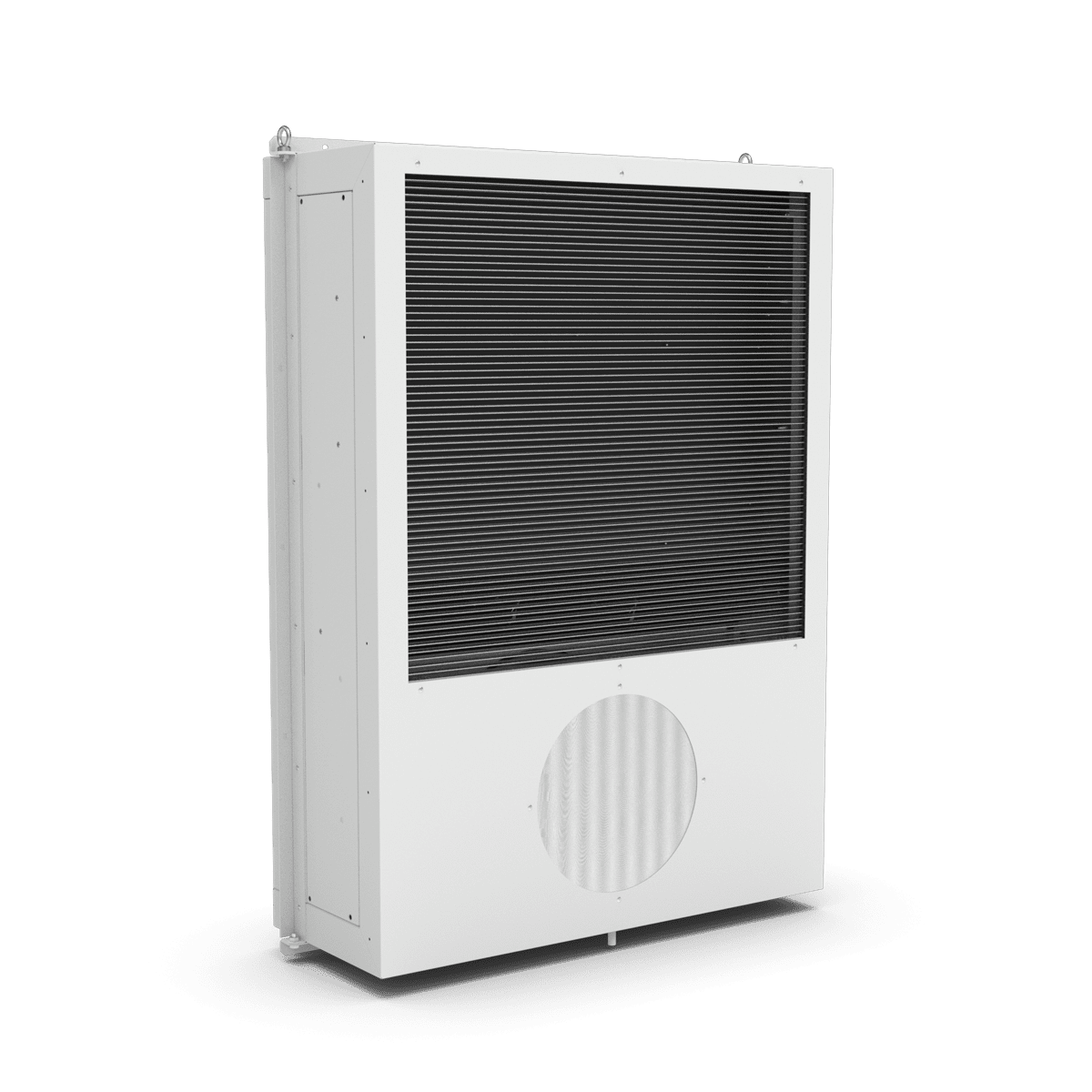

Our door-mounted DMC 8.0 chiller is designed for Battery Energy Storage Systems (BESS) with a compact, semi-recessed installation that saves valuable container space. Built for extreme environments, it operates reliably from -4°F to +133°F. The DMC 8.0also ensures low-noise performance for sensitive installations. Design: powder coated RAL 7035 (light gray)
Features
Energy Efficient Compressor
Inverter driven compressor for energy efficiency designed for charging and discharging phase battery cycles.
Temperature Precision
The DMC 8.0 delivers high temperature precision, automatically adjusting cooling capacity to match demand. This results in exceptional thermal stability — within ±1 K, even at loads as low as 30%.
Heater for Optimal Battery Operation
Integrated heater for optimal battery operation at low ambient temperatures to increase battery life even in cold climates by maintaining the required temperature in stand-by mode.
Efficient Fan
Variable speed, high-efficiency EC fans deliver powerful airflow with low energy consumption and minimal noise — ideal for noise-sensitive or urban installation sites.
Integrated Communication
The controller supports both Modbus RTU and Modbus TCP, enabling remote monitoring and integration with your Battery Management System.
Installation flexibility
The DMC can be side mounted or partially recessed mounting with hydraulic and electrical connections on the top side.
Optimized Service Routine
Optimized internal layout, allowing for easy maintenance from the front of the unit. Technicians can access critical components quickly, reducing downtime and simplifying service routines.
Certifications
CE Listed and UL Pending.
Technical Data Overview
| MODEL NUMBER | DMC 8.0 | ||
|---|---|---|---|
| MOUNT STYLE | Recesssed | Flush | |
| PART NUMBER | 4218080XXXX | ||
| RATED VOLTAGE AC 50 /60 | (V ± 10%) | 230 1- | |
| CAPACITY* | Btu/h | 27300 | |
| kW | 8 | ||
| Tons | 2.3 | ||
| FLOW RATE of PUMP | GPM | 15.9 | |
| LPM | 60 | ||
| PUMP PRESSURE | psi | 14.5 | |
| bar | 1 |
||
| TANK VOLUME (gal/l) | 2.6/10 | ||
| MAX POWER CONSUMPTION (kW) | 4.5 | ||
| MAX CURRENT CONSUMPTION (A) | 17.5 | ||
| AIR VOLUME FLOW (m^3/h) | 1700 | ||
| CONNECTIONS (medium) IG (BSP) | 3/4” | ||
| REFRIGERANT | R410A | ||
| MAX NOISE LEVEL @ 60 Hz (EN ISO 3741) | 65dB | ||
| WIDTH (in) | 34.65 | ||
| DEPTH in (in) | 12.60 | ||
| HEIGHT in (in) | 47.32 | ||
| DRY WEIGHT (lb/kg) | 375/170 | ||
| *W64 / A90 (with pump) 60 Hz | |||
Datasheets & Downloads
| DMC 8.0 | |
| MANUAL | |
| DATA SHEET | |
| DRAWINGS |

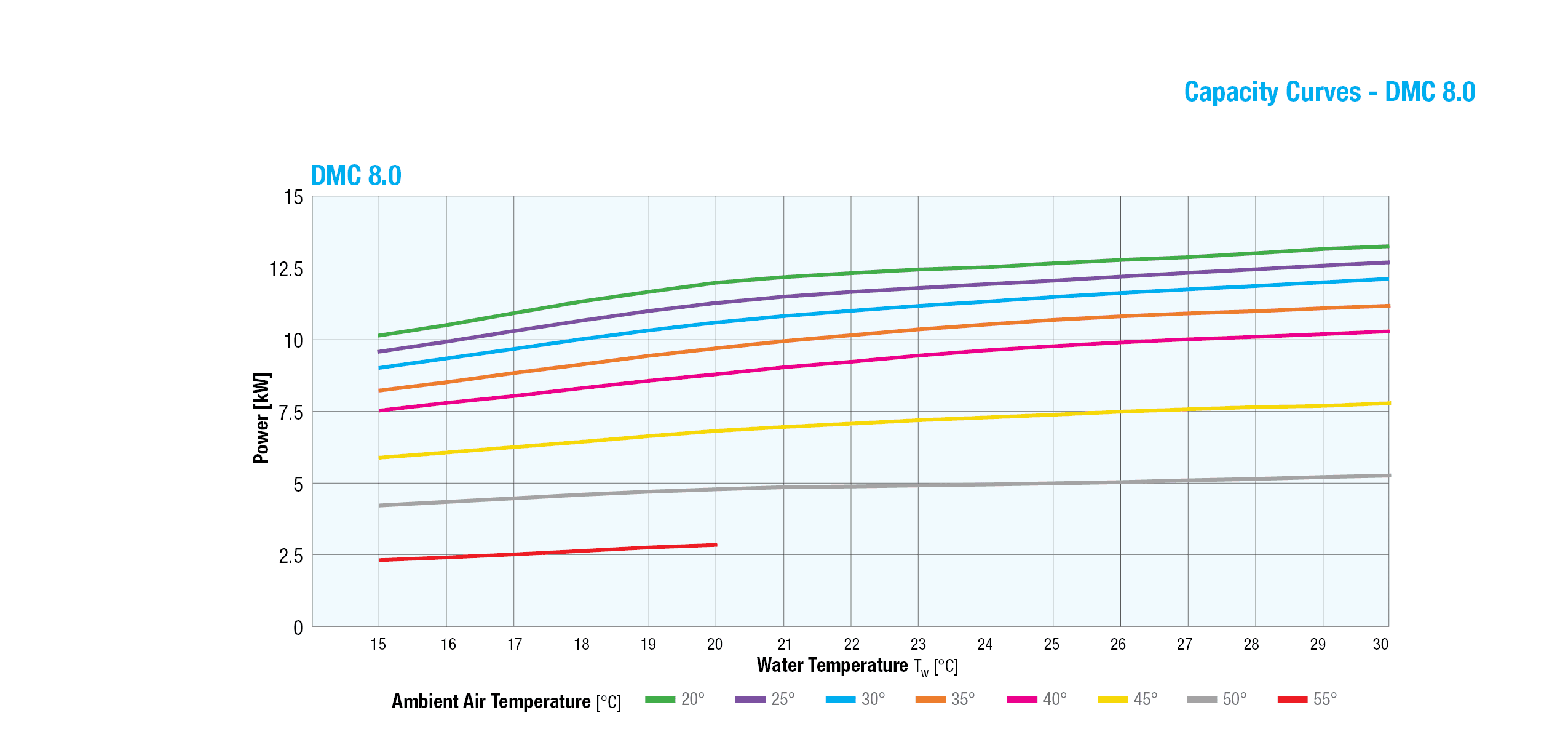

Performance Curve
Cooling Capacity
Subject to technical amendments and misprints.
