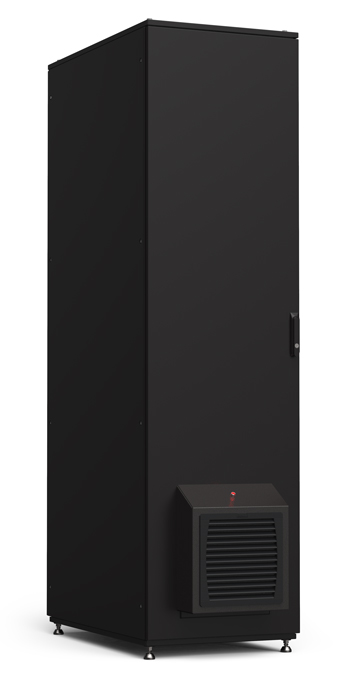

Pfannenberg Datawind Filterfans® are certified for Indoor Use (NEMA 12/IP55) providing electrical enclosure with protection against water and dust. Thanks to its externally-mounted design, this Filterfan® allows the cooling of enclosures built without room for any protrusion.
Perfect Design for IT Racks
More racks allowed in the cabinet thanks to the externally mounted Filterfan®.
Maintenance Indication Light
LED indicator warns when the temperature exceeds the desired temperature inside the cabinet. Indication of fan malfunction or clogged filter.
Zero protrusion into the enclosure
Externally mounted, allowing for full use of all racks within the bays.
30° Slope Top
Designed to avoid dust collection and improve safety.
Fits existing Filterfan® cutout
Only need to drill mounting holes with power tools. Pre-existing 2.5” hole cut to allow pass through wiring.
Filterfan 4.0™ Benefits
Design based on the Filterfan 4.0™ line to provide the same airflow as standard Filterfans® using a fluted filter mat with a 3x longer service life. The Datawind Filterfan® is also designed to be used with our existing PFA exhaust filters.
IEC Power Connector 6ft cable
Located on center of fan to allow door to hinge in both directions. Fan side – IEC C13 plug with lock mechanism. Power side – NEMA 5-15P (115v) and IEC C14 (230v)
Cable to adjustable thermostat
13ft length cable to an adjustable thermostat with DIN mount bracket to allow fan to toggle on/off depending on cooling need. This feature extends both fan and filter lives.
Available in Black (RAL 9004) and White (RAL 9003). 115v and 230v options also available with three unimpeded airflow ratings (38, 152, and 560 CFM).
