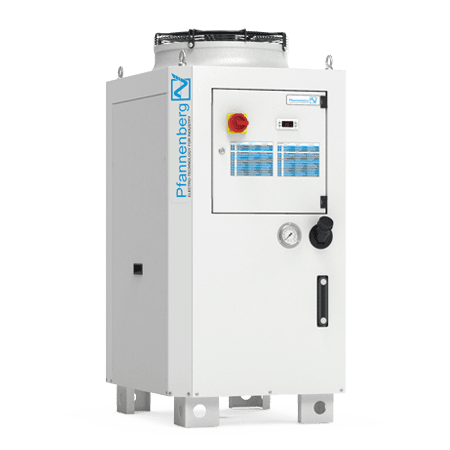

EB 95 ECO
CHILLERS
34,466 BTU/hr – 10.1 kW – 2.9 Tons
Our EB 95 Eco (Indoor/Outdoor) chillers take advantage of the inverter technology to ensure a direct response to cooling demand. This keeps both energy consumption and operating cost to a minimum, while the range of cooling capacity and durability of the units is increased significantly. Design: powder coated RAL 7035 (light gray)
Features
Indoor/Outdoor Environment
Designed to work in ambient conditions from -4°F to 113°F (-20°C to 45°C). Pfannenberg EB 2.0 Eco Chillers can be used for outdoor applications or to simply remove the heat from your factory: combined with a PWS/PWW heat exchanger, the EB 2.0 Eco Chiller can provide the right cooling in any harsh production environment.
Higher Temperature Precision
Rapid and accurate adjustment of cooling capacity to the actual load leads to a significant higher stability of the medium temperature. (±0,1 K).
Silent Operation
The EC fans ensures the optimum airflow any time avoiding constantly high noise emissions.
Energy Efficiency and Costs Savings
Variable speed technology (compressor and fan) combined with efficient refrigerant R410A ensure a reduced energy consumption. The inverter compressor increases operating flexibility (50-100%) while reducing the electrical consumption by up to 65%.
Maximum Efficiency in Partial-Load Operation
The chiller automatically adapts to your application so you always have the right dimensioning and high efficiency at any workload.
Successful Design
Our product design is based on customized units that have proven their performance in industrial applications all over the world.
Technical Data Overview
MODEL | EB 95 ECO | |
---|---|---|
PART NUMBER | 42030955045 | |
Rated Voltage AC 50 / 60 (V ±10 %) | 400 3~ / 460 3~ | |
CAPACITY* | Btu/h | 34,466 |
kW | 10.1 | |
Tons | 2.9 | |
FLOW RATE (GPM) | 7 | |
PUMP PRESSURE (psig) | 44 | |
TANK VOLUME (gal) | 13 | |
CONNECTIONS (medium) IG | 3/4” | |
WIDTH (in) | 23.81 | |
DEPTH (in) | 30 | |
HEIGHT (in) | 65.98 | |
DRY WEIGHT (lb) | 374 | |
*W64 / A90 (with pump) 60 Hz |
Performance Curve
Cumulative Cost Over 5 Years
Subject to technical amendments and misprints.
