EB 140, EB 160, EB 220 WT
CHILLERS
47,750-88,712 Btu/h / 4-7.4 TONS
Our EB 140 WT, EB 160 WT, and EB 220 WT (NEMA Type 12) large packaged chillers are the solution for a wide range of industrial applications. The precision fluid temperature control up to ±2°F for accurate process cooling through smart controller, and custom designed refrigerant system protects the compressor and extends service life. These units allow higher cooling capacities with the smallest possible footprint. Design: powder coated RAL 7035 (light gray)
Features
Fluid Flow Protection
Recirculates fluid during low demand periods through built-in hydraulic bypass valve. Electric tank level switch connected to controller prevents pump from running dry. Flow switch will trigger alarm if flow is too low, protecting the equipment being cooled.
Temperature Accuracy and Cooling Load Management
Recirculates fluid during low demand periods through built-in hydraulic bypass valve. Electric tank level switch connected to controller prevents pump from running dry. Flow switch will trigger alarm if flow is too low, protecting the equipment being cooled.
Ease Of Installation
Comes standard with plinth to elevate chiller if installed on damp/wet area. Fork truck ready for moving with eye-bolt.
Smart Controller
Sets min/max water temperature with alarm.Temperature differential control with external sensor. Error message display with quick reference.
Easy Fluid Access
Open-loop design for easy fluid monitoring. Top-up access in the front with gauge level. Manometer to read fluid loop pressure.
Non-Ferrous Design
Non-Ferrous tank and piping reduces corrosion.
Technical Data Overview
MODEL NUMBER | EB 140 WT | EB 160 WT | EB 220 WT | |
---|---|---|---|---|
PART NUMBER | 42031405022 | 42031605026 | 42032205007 | |
CAPACITY* | Btu/h | 47750 | 54500 | 88712 |
kW | 14.8 | 17.6 | 26 | |
Tons | 4 | 4.5 | 7.4 | |
MAX CURRENT CONSUMPTION (A) | 6.8 / 11.9 | 18.9 / 19.1 | 18.9 / 19.1 | |
TANK VOLUME (gal) | 19 | 19 | 19 | |
CONNECTIONS (medium) IG | 1” | 1” | 1” | |
WIDTH (in) | 33.68 | 33.68 | 33.68 | |
DEPTH in (in) | 29.96 | 29.96 | 29.96 | |
HEIGHT in (in) | 60.40 | 60.40 | 60.40 | |
DRY WEIGHT (lb) | 396 | 418 | 462 | |
*W64 / A90 (with pump) 60 Hz |

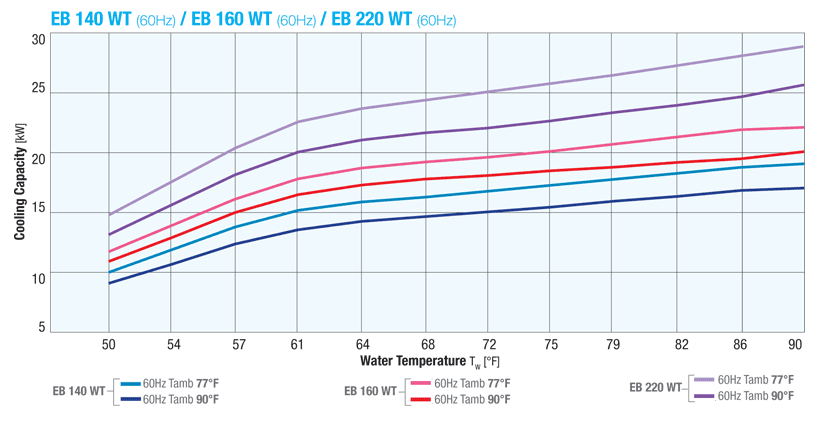

Performance Curve
Cooling Capacity
Subject to technical amendments and misprints.
