Air/Air Heat Exchangers

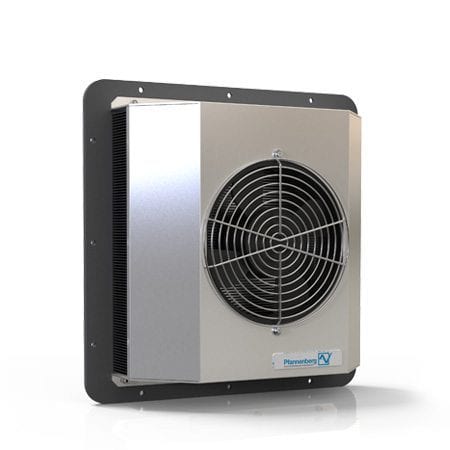

Our PKS 3042 (NEMA Type 4/4X) Mini Series Stainless Steel Air/Air Heat Exchangers are an ideal solution for a wide variety of applications. Close loop design to isolate external air from inside of enclosure without the need to change filter. Housing: 304 stainless steel Cover: 304 stainless steel
Closed Loop Design
Designed to isolate the external ambient air from the internally conditioned air eliminating the risk of contaminants entering the cabinet.
High performance/cost ratios due to innovative use of advanced heat transfer and manufacturing technologies.
Space Saving Design
Thin profile with minimum intrusion into enclosure.
Powder coated aluminum mounting plate with stainless steel covers.
Multiple Mounting Options
Aluminum mounting plate can be mounted on the top, side, front or back.
Multiple Electrical Configurations
115 VAC units arrive with 6 ft long 3-pronged plug. DC units arrive with bare lead wires. Other voltages available upon request.
Reduced Fan Maintenance
UL Listed 6.0” dual axial ball bearing fans for years of maintenance free operation (dry & wet locations).
Minimum number of penetrations by cover fasteners, mounting fasteners and external wires.
Technical Data Overview
|PKS 3042||115 V|
|POWER CONSUMPTION (W)||82|
|CURRENT CONSUMPTION (A)||0.72|
|SPECIFIC COOLING CAPACITY (W/°C) / (W/°F)||22 / 12|
|DIMENSIONS W x D x H in||12 x 7.89 x 12|
|WEIGHT lb (kg)(without packaging)||17 (7.7)|
|AMBIENT TEMPERATURE RANGE||- 13°F … + 131°F / + - 25°C … + 55°C|
|MAX. ENCLOSURE TEMP||N/A|
|CONTROL RANGE (adjustable)||N/A|
|DESIGN||Mounting Plate: powder coated aluminium; Cover: 316 Stainless Steel|
Subject to technical amendments and misprints.
