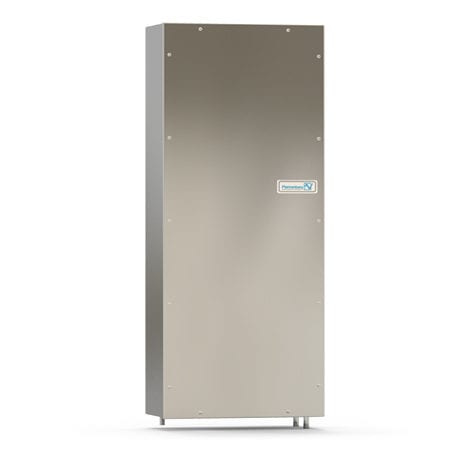

PWS 7332 SS
AIR/WATER HEAT EXCHANGERS
10748 Btu/h
Our PWS 7332 SS (NEMA Type 12/3R/4/4x) Advantage Series Air/Water Heat Exchangers is compatible with existing popular PWS 7000 series units still in the field. Installation is service friendly requiring no elaborate reworking of the mounting cutout. Need a cool liquid source? Pair this unit with one of our packaged chillers. Housing: stainless steel 304. Cover: stainless steel 304
Features
Washdown Roof Design
Metal covers are designed with a sloped top which sheds water away from the electrical enclosure as well as eliminates potential water pooling, corrosion and ice buildup.
Rugged Design
Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.
Long Airflow Path
Heat exchangers are designed to draw hot air from the top of the enclosure and deliver cool air below the components.
Closed Loop Design
Designed to isolate the external ambient air from the internal air circuit eliminating the risk of contaminants entering the cabinet.
Push to Connect Fittings
Hydronic connectors that supports quick connection to 1/2 inch O.D. hose or 1/2 inch I.D. hose with included adapter. Unlike other units that have rigid permanent connections.
Optimized Internal Design
Smart engineered solution, easy to service and maintain.
Intelligent Control of Water Flow
The adjustable mechanical thermostat permits precise control of the electrical enclosure temperature by regulating the coolant flow by activating a solenoid valve. This regulates the coolant flow to minimize coolant waste and increase energy-efficiency.
Condensation Management
Physical barriers allow for condensation to be collected and drained from the system with zero intrusion into the cabinet.
Technical Data Overview
PWS 7332 SS | 115 V | 230 V |
---|---|---|
PART NUMBER | 12353010008 | 12353020008 |
FREQUENCY (Hz) | 60 | 50/60 |
POWER CONSUMPTION (W) | 453 | 295/385 |
NOMINAL (RUN) CURRENT* (A) | 3.8 | 1.3/1.95 |
FUSE (max.)** CLASS CC | 16 | 6 |
Fluid Connection | 1/2" OD Hose Barb | 1/2" OD Hose Barb |
NOISE LEVEL*** dB(A) | <54 | <54 |
DRY WEIGHT lb (kg)(without packaging) | 51 (23) | 51 (23) |
Subject to technical amendments and misprints.
