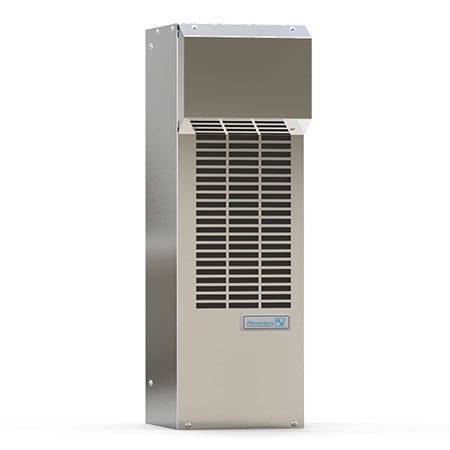

DTS 3181 SL
SIDE MOUNT COOLING UNITS
Our DTS 3181 SL (NEMA Type 4/4x) stainless steel cooling units are an ideal solution for wash-down applications. These units are designed to fit shallow enclosures vs 31X1 standard model. Housing: stainless steel 304. Cover: stainless steel 304
ERP Efficiency Certified
As a component of the Kyoto Protocol to reduce carbon monoxide emissions, the European Energy Related Products (ERP) Directive includes an efficiency rating for fans. Pfannenberg proudly utilizes components which adhere to these requirements.
High Airflow Backward Curve Impeller Fan
Provides high airflow in a long lasting, single bearing design. Outperforms typical two-bearing blowers with nearly twice the lifespan.
Closed Loop Design
Designed to isolate the external ambient air from the internally conditioned air eliminating the risk of contaminants entering the cabinet.
Thermal Overload Protection
Compressor and fan motors are outfitted with integral temperature switches to shut down the unit in the event of excessive temperature. This increases the operating life of the compressor by preventing thermal overload trips.
Pressure Overload Protection
High pressure cutout switch ensures safety by shutting off the compressor in the event of excessive pressure appearing in the refrigeration circuit.
Outdoor and washdown units have a special coating on pipes and coils on the ambient side of the unit to provide maximum protection from saltwater, sour gas, and other corrosive substances.
Utilizes HFC-free R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment.
Self Protected from Harsh Environments
Our unit is uniquely designed to protect itself in NEMA 3R, 4, and 4X environments. An example of this is the location of our control electronics within our dry, cool interior circuit.
Maintenance Free, Filterless Design
The wide fin spacing is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency.
Active Condensate Management
Condensation is a natural by-product of refrigeration. The heated condensate collection pan boils this off thereby eliminating the need for drain tubes and buckets.To conserve power, this heater only activates when necessary.
Hermetically Sealed Compressor
The absence of any refrigerant fill valves eliminates leak paths. Recharging is never needed. 100% cooling capacity efficiency is ensured.
Thermal Expansion Valve
Regulates the flow of refrigerant based on thermal demand for efficient performance over the entire operating temperature range.
High Ambient Performance
The DTS 3000 Series Cooling Units were designed utilizing high temperature compressors and larger condensers. Both the indoor NEMA Type 12 units and outdoor units perform very well in environments that require cooling where the maximum ambient temperature is 131° F.
Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.
Technical Data Overview
|DTS 3181 SL||230 V||400/460 V|
|POWER CONSUMPTION (W)||890||751|
|NOMINAL (RUN) CURRENT* (@35A/35A)||4.49||2.25|
|FUSE (max.)** CLASS CC||8||4|
|NOISE LEVEL*** dB(A)||<70||<70|
|WEIGHT lb (kg)(without packaging)||108 (49)||108 (49)|
|DIMENSIONS||36 in. (914 mm) h x 12 in. (305 mm) w x 12 in. (305 mm) d|
|*For the MCA (Maximum Current Ampacity) value per UL, please consult product technical datasheets available above. *** (According to EN ISO 3741)
Datasheets & Downloads
|ADAPTER PLATES FOR OEM COOLING UNITS||https://www.pfannenbergusa.com/spare-parts/|
How to use this chart:
Example: @ 95°F (ambient, X-axis), @ 95°F (internal, diagonal lines)
= 5097 Btu/h cooling capacity (Y-axis)
|AMBIENT TEMPERATURE RANGE||+ 59°F … + 131°F / + 15°C … + 55°C|
|CONTROL RANGE (adjustable)||SC||+ 77°F … + 113°F / + 25°C … + 45°C; factory setting + 95°F / + 35°C|
|CONDENSATE MANAGEMENT||active condensate evaporation system with safety overflow|
|PROTECTION SYSTEM ACCORDING TO NEMA TYPE||NEMA Type 4/4x(against enclosure when properly installed)|
|NEMA 1 towards the surroundings when properly installed|
Subject to technical amendments and misprints.
