SIDE MOUNT COOLING UNITS

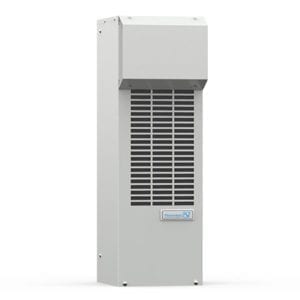

Our DTS 3185 (NEMA Type 4/4x) stainless steel cooling units are an ideal solution for a wide variety of wash-down applications. These units include a rainhood are particularly suited for enclosures that operate outdoors. Available options include a low ambient package and enclosure heater. Housing: stainless steel 304. Cover: stainless steel 304
ERP Efficiency Certified
As a component of the Kyoto Protocol to reduce carbon monoxide emissions, the European Energy Related Products (ERP) Directive includes an efficiency rating for fans. Pfannenberg proudly utilizes components which adhere to these requirements.
High Airflow Backward Curve Impeller Fan
Provides high airflow in a long lasting, single bearing design. Outperforms typical two-bearing blowers with nearly twice the lifespan.
Thermal Expansion Valve
Regulates the flow of refrigerant based on thermal demand for efficient performance over the entire operating temperature range.
Three-phase 400/460 VAC powered units are protected from phase mis-wiring.
Pluggable Power Connection
Easily made without opening the chassis.
Maintenance Free, Filterless Design
The wide fin spacing is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency.
Easy Access Control Panel
Electrical controls are easily accessible with the flip down access panel.
Pressure Overload Protection
High pressure cutout switch ensures safety by shutting off the compressor in the event of excessive pressure appearing in the refrigeration circuit.
Thermal Overload Protection
Compressor and fan motors are outfitted with integral temperature switches to shut down the unit in the event of excessive temperature. This increases the operating life of the compressor by preventing thermal overload trips.
Utilizes HFC-free R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment.
Active Condensate Management
Condensation is a natural by-product of refrigeration. The heated condensate collection pan boils this off thereby eliminating the need for drain tubes and buckets. To conserve power, this heater only activates when necessary.
Lifting Lug Ports
Threaded holes accommodate the installation of lifting lugs to facilitate safe installation.
New Narrower Footprint
Compact design delivers high cooling capacity to enclosures as small as 12 inches (300mm) in width.
Self Protected from Harsh Environments
Our unit is uniquely designed to protect itself in NEMA 3R, 4, and 4X environments. An example of this is the location of our control electronics within our dry, cool interior circuit.
Outdoor and washdown units have a special coating on pipes and coils on the ambient side of the unit to provide maximum protection from saltwater, sour gas, and other corrosive substances.
High Ambient Performance
The DTS 3000 Series Cooling Units were designed utilizing high temperature compressors and larger condensers. Both the indoor NEMA Type 12 units and outdoor units perform very well in environments that require cooling where the maximum ambient temperature is 131° F.
Technical Data Overview
|DTS 3185||115 V||230 V||400/460 V|
|POWER CONSUMPTION (W)||1000||1020||1283|
|NOMINAL (RUN) CURRENT* (@35A/35A)||8.57||5.58||2.72|
|FUSE (max.)** CLASS CC||15||10||5|
|NOISE LEVEL*** dB(A)||<70||<70||<70|
|WEIGHT lb (kg)(without packaging)||108 (49)||108 (49)||108 (49)|
|DIMENSIONS||36 in. (914 mm) h x 12 in. (305 mm) w x 12 in. (305 mm) d|
|*For the MCA (Maximum Current Ampacity) value per UL, please consult product technical datasheets available above. *** (According to EN ISO 3741)
Datasheets & Downloads
|ADAPTER PLATES FOR OEM COOLING UNITS||https://www.pfannenbergusa.com/spare-parts/|
How to use this chart:
Example: @ 95°F (ambient, X-axis), @ 95°F (internal, diagonal lines)
= 6995 Btu/h cooling capacity (Y-axis)
|AMBIENT TEMPERATURE RANGE||+ 32°F … + 131°F / + 0°C … + 55°C|
|CONTROL RANGE (adjustable)||SC||+ 77°F … + 113°F / + 25°C … + 45°C; factory setting + 95°F / + 35°C|
|CONDENSATE MANAGEMENT||active condensate evaporation system with safety overflow|
|PROTECTION SYSTEM ACCORDING TO NEMA TYPE||NEMA Type 4/4x(against enclosure when properly installed)|
|NEMA 1 towards the surroundings when properly installed|
Subject to technical amendments and misprints.
