SIDE MOUNT COOLING UNITS

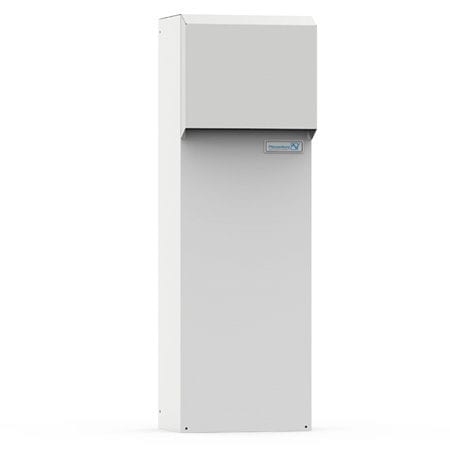

Our DTS 3261 (NEMA Type 3R/4) outdoor cooling units are an ideal solution for a wide variety of applications. These units utilize a long internal air path to capture heat above the components and provide cool air below. Housing: galvanized sheet steel. Cover: electrostatically powder coated RAL 7035 (light grey); for ANSI 61 grey use part no. ending in …351
ERP Efficiency Certified
As a component of the Kyoto Protocol to reduce carbon monoxide emissions, the European Energy Related Products (ERP) Directive includes an efficiency rating for fans. Pfannenberg proudly utilizes components which adhere to these requirements.
High Airflow Backward Curve Impeller Fan
Provides high airflow in a long lasting, single bearing design. Outperforms typical two-bearing blowers with nearly twice the lifespan.
Closed Loop Design
Designed to isolate the external ambient air from the internally conditioned air eliminating the risk of contaminants entering the cabinet.
Thermal Overload Protection
Compressor and fan motors are outfitted with integral temperature switches to shut down the unit in the event of excessive temperature. This increases the operating life of the compressor by preventing thermal overload trips.
Pressure Overload Protection
High pressure cutout switch ensures safety by shutting off the compressor in the event of excessive pressure appearing in the refrigeration circuit.
Utilizes HFC-free R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment.
Maintenance Free, Filterless Design
The wide fin spacing is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency.
Active Condensate Management
Condensation is a natural by-product of refrigeration. The heated condensate collection pan boils this off thereby eliminating the need for drain tubes and buckets.To conserve power, this heater only activates when necessary.
Hermetically Sealed Compressor
The absence of any refrigerant fill valves eliminates leak paths. Recharging is never needed. 100% cooling capacity efficiency is ensured.
Outdoor and wash-down units have a special coating on pipes and coils on the ambient side of the unit to provide maximum protection from saltwater, sour gas, and other corrosive substances.
Thermal Expansion Valve
Regulates the flow of refrigerant based on thermal demand for efficient performance over the entire operating temperature range.
High Ambient Performance
The DTS 3000 Series Cooling Units were designed utilizing high temperature compressors and larger condensers. Both the indoor NEMA Type 12 units and outdoor units perform very well in environments that require cooling where the maximum ambient temperature is 131° F.
Achieved with waste heat exhausted through the bottom.
Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.
Technical Data Overview
|DTS 3261||115 V||230 V||400/460 V|
|POWER CONSUMPTION (W)||1680||1425||1400|
|NOMINAL (RUN) CURRENT* (@35A/35A)||11.6||5.6||2.6|
|FUSE (max.)** CLASS CC||20||10||5|
|NOISE LEVEL*** dB(A)||<73||<73||<73|
|WEIGHT lb (kg)(without packaging)||123.5 (56)||123.5 (56)||139 (63)|
|DIMENSIONS||47.6 in. (1209 mm) h x 15.6 in. (395 mm) w x 10.6 in. (269 mm) d|
|*For the MCA (Maximum Current Ampacity) value per UL, please consult product technical datasheets available above. *** (According to EN ISO 3741)
How to use this chart:
Example: @ 95°F (ambient, X-axis), @ 95°F (internal, diagonal lines)
= 7850 Btu/h cooling capacity (Y-axis)
|AMBIENT TEMPERATURE RANGE||+ 32°F … + 131°F / + 0°C … + 55°C|
|CONTROL RANGE (adjustable)||SC||+ 77°F … + 113°F / + 25°C … + 45°C; factory setting + 95°F / + 35°C|
|CONDENSATE MANAGEMENT||active condensate evaporation system with safety overflow|
|PROTECTION SYSTEM ACCORDING TO NEMA TYPE||NEMA Type 3R/4(against enclosure when properly installed)|
|NEMA 1 towards the surroundings when properly installed|
Subject to technical amendments and misprints.
