Washdown Rainhoods

FILTERFAN® RAINHOODS

NEMA 3R/4/4X/IPx6

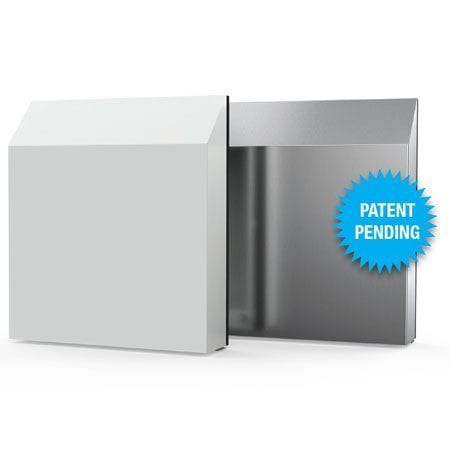

Our Pfannenberg Rainhoods (Patent Pending) feature a robust design rated to NEMA TYPE 3R/4/4x and IPx6 when used with Pfannenberg Filterfans®. Options include painted galvanized steel, stainless steel and FDA compliant food and beverage grade versions.


MODELCOLORNEMA TYPEPART NUMBERDIMENSIONS W x H x D in (mm)
COMPATIBLE WITH PF 22000 FILTERFANS® AND PFA 20000 EXHAUST FILTERS
PF-RH-20000-WD-LGLt Grey RAL 70353R/4181820000108.7 (221) x 10.4 (265) x 4 (102)
PF-RH-20000-WD-GYGrey ANSI 613R/418182000009
PF-RH-20000-WD-SS304 SS 4/4X18182000011
COMPATIBLE WITH PF 3X000 FILTERFANS® AND PFA 30000 EXHAUST FILTERS
PF-RH-30000-WD-LGLt Grey RAL 70353R/41818200001310.9 (276) x 12.7 (322) x 4 (102)
PF-RH-30000-WD-GYGrey ANSI 613R/418182000012
PF-RH-30000-WD-SS304 SS 4/4X18182000014
COMPATIBLE WITH PF 4XX00 FILTERFANS® AND PFA 60000 EXHAUST FILTERS
PF-RH-40000-WD-LGLt Grey RAL 70353R/41818200001612.9 (326) x 14.6 (372) x 4 (102)
PF-RH-40000-WD-GYGrey ANSI 613R/418182000015
PF-RH-40000-WD-SS304 SS 4/4X18182000017
COMPATIBLE WITH PF 6XX00 FILTERFANS® AND PFA 60000 EXHAUST FILTERS
PF-RH-60000-WD-LGLt Grey RAL 70353R/41818200001915.5 (394) x 17.3 (440) x 4 (102)
PF-RH-60000-WD-GYGrey ANSI 613R/418182000018
PF-RH-60000-WD-SS304 SS 4/4X18182000020
TYPEMANUALDRAWINGSMODEL
FILTERFAN RAINHOODS
PF-RH-20000
PF-RH-30000
PF-RH-40000
PF-RH-60000

SKU: 18182000009, 18182000010, 18182000011, 18182000012, 18182000013, 18182000014, 18182000015, 18182000016, 18182000017, 18182000018, 18182000019, 18182000020, Category:

Subject to technical amendments and misprints.
