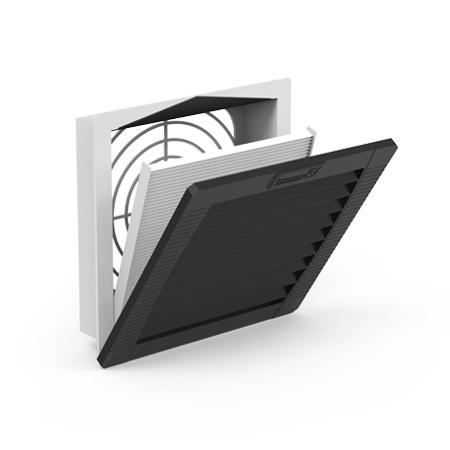

PFA 20000 R
OUTDOOR EXHAUST FILTERS
Our PFA 20000 R (Type 3R) Exhaust Filters provide a Type 3R system of protection. Exhaust Filters come with integrated foam seal to enclosure and are easy to install thanks to their snap fastener developed and patented by Pfannenberg. Color: RAL 7035 (light grey); RAL 9011 (black)
Outdoor Weather Ready
Protection against ingress of falling dirt, and harmful effects on sensitive components against rain, sleet, snow and even external ice formation (Type 3R rating).
Patented Tool-Less 4 Corner Fastening System
The patented fastening system allows for fast installation (possible to install in seconds) and easy removal reducing MTTR.
Highest System Airflow Compared to Competitors Filter Fans
The design of the louvers supports the greatest airflow while further protecting against airborne dust and dirt.
Aesthetically Pleasing Design Using Neutral Colors
Available in a standard RAL 7035 Grey or RAL 9011 Black. These units blend in well with the modern styles and colors used for existing machines and systems.
Technical Data Overview
|PFA 20000 R OUTDOOR EXHAUST FILTERS|
|COLOR||RAL 7035 (Lt. Grey)||RAL 9011 (Black)|
|DESIGN (housing and |
|made of injection-molded thermoplastic, self-extinguishing, UL 94 VO|
|APPROVALS||UL, cUL, CE|
|CUT OUT DIMENSIONS inches (mm)||4.92 x 4.92 (125 x 125)|
|W x H x D (in)||5.71 x 5.71 x 1.22|
|System of protection (UL 50)||Type 3R|
|FILTER MAT QUALITY CLASS||G 4|
|Used With PF 22000 R, PFA 20000 R||Part No.||Description||Size|
|18611600034||PF/PFA 2xxxx - 5 Pack||4.57 in X 4.25 in X .67 in
(116mm X 108mm X 17mm)
Subject to technical amendments and misprints.
