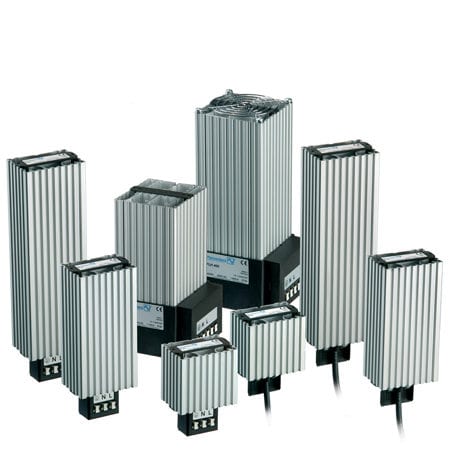

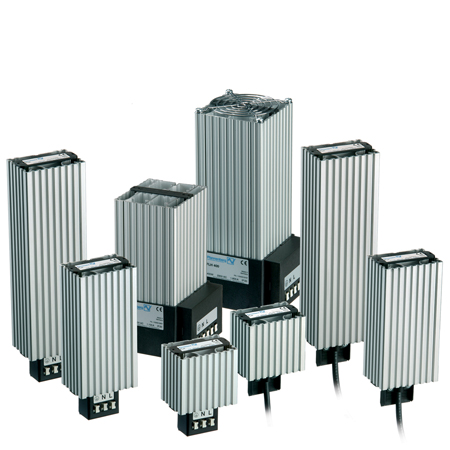

FLH SERIES
RADIANT AND FAN HEATERS
30 W – 400 W
Our FLH Series of Heaters are available as a radiant heater or as a forced air heater for larger wattages. These heaters are designed to protect electronics from low temperatures and moisture caused by high humidity or rapid temperature changes. Available in 68 models. Housing: Anodized aluminum
Features
Flexible Mounting Options
Unit can be connected to a standard DIN rail without tools using the included snap fastener.
Heat Distribution
Our larger FLH 250 and FLH 400 Heaters include a fan to help circulate the heat in larger enclosures, ensuring quick and even distribution.
Durable Long-Lasting
With its rugged design and solid construction you can count on the FLH Heaters to perform consistently over a long period of time.
Reduced Installation Time
Save time and money when installing or moving the unit with our UL listed quick connects.
UL Certified
Heaters are UL Recognized allowing for integration into UL 508A panels.
Technical Data Overview
MODEL NUMBER | PART NUMBER | HEATING PERFORMANCE (W)* | FREQUENCY (Hz) | POWER CONSUMPTION | STARTING CURRENT (A) |
---|---|---|---|---|---|
FLH SERIES (30 - 150 W) Radiant Heaters - With extruded aluminum body | |||||
FLH 030W | 17003005007 (110 V - 250 V) | 30 | 50/60 | 30 | 1.2 |
FLH 045W | 17004505007 (110 V - 250 V) | 45 | 50/60 | 45 | 1.8 |
FLH 060W | 17006005007 (110 V - 250 V) | 60 | 50/60 | 60 | 2.5 |
FLH 075W | 17007505007 (110 V - 250 V) | 75 | 50/60 | 75 | 4.5 |
FLH 100W | 17010005007 (110 V - 250 V) | 100 | 50/60 | 100 | 5.0 |
FLH 150W | 17015005007 (110 V - 250 V) | 150 | 50/60 | 150 | 7.5 |
FLH SERIES (250 - 400 W) Fan Heaters - With extruded aluminum body | |||||
FLH 250 | 17025015007 | 250 | 60 | 260 | 2.2 |
17025010007 | 250 | 50/60 | 260 | 1.1 | |
FLH 400 | 17040015007 | 400 | 60 | 410 | 3.6 |
17040010007 | 400 | 50/60 | 410 | 1.8 | |
*Heating Performance (Ta = +68 °F/+20 °C) |
Additional Data
FLH 030W / FLH 045W | FLH 060 | FLH 075W / FLH 100W | FLH 150W | FLH 250W | FLH 400W | |
---|---|---|---|---|---|---|
SYSTEM OF PROTECTION | IP 44 (connecting cable) and IP 20 (plug terminal connector) | IP 20 | ||||
STORAGE TEMPERATURE | -4 … +104 °F / -20 … +40 °C | |||||
OPERATING TEMPERATURE | -4 … +104 °F / -20 … +40 °C | |||||
W x D x H in (mm) | 2.76 (70) x 1.97 (50) x 3.94 (100) | 2.76 (70) x 1.97 (50) x 6.89 (175) | 2.76 (70) x 1.97 (50) x 6.89 (175) | 2.76 (70) x 1.97 (50) x 9.84(250) | 3.35 (85) x 4.09 (104) x 7.34 (186.5) | 3.35 (85) x 4.09 (104) x 8.92 (226.5) |
WEIGHT (kg) | .55 (.25) | .99 (.45) | 1.12 (.51) | 1.17 (.77) | 2.29 (1.04) | 2.65 (1.20) |
TYPE OF MOUNTING | snap fastening for 35 mm profile bars according to EN 60715 |
Subject to technical amendments and misprints.
