2.4 kW / 8189 Btu/h / 0.68 TONS

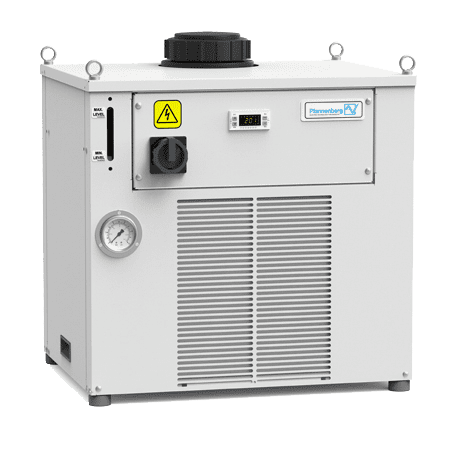

Our CCE 6301 (NEMA Type 12) compact and efficient chillers offer many features found only in larger models. These smaller frame chillers are the solution for integrated motor and/or process cooling required for high-speed machining centers. Durable, Reliable and Extremely serviceable, the CCE Compact Chillers are the guaranty of reduced maintenance costs and extended lifetime. The single phase power requirements make them easily installed in most commercial and industrial settings. Design: powder coated RAL 7035 (light gray)
Sets min/max water temperature with alarm. Equipped with a programmable control for precise ± 2c temperature regulation of the cooling medium.
Fluid Flow Protection
Flow switch will trigger alarm if flow is too low, protecting the equipment being cooled. Electric tank level switch connected to controller protects pump from damage caused by running dry.
Cooled with water or water/glycol mixtures. Internal hydraulic bypass protects pump by ensuring minimum flow and protects the application by limiting the system pressure. Filter alarm on chiller detects decrease of performance due to air contamination.
Ease of Installation
Can be mounted on top of the enclosure. Crane lifting ready for moving with eye-bolts.
Easy Fluid Access
Reliable, easy to read level indication. Open-loop design for easy fluid monitoring. Top-up access in the front with gauge level on top. Manometer to read fluid loop pressure.
Non-Ferrous tank and piping reduces corrosion. Stand-alone chiller has steel housing with thick powder coating. Robust industry standard with eyebolts.
Technical Data Overview
|CCE 6301||230 VAC (1~)|
|NOMINAL CURRENT (A)||8|
|TANK VOLUME (gal)||3|
|COOLANT CONNECTIONS (NPT-F)||1/2"|
|WIDTH in (mm)||23.62 (600)|
|DEPTH in (mm)||22.5 (572)|
|HEIGHT in (mm)||19.4 (493)|
|DRY WEIGHT lb (kg)||158 (71.8)|

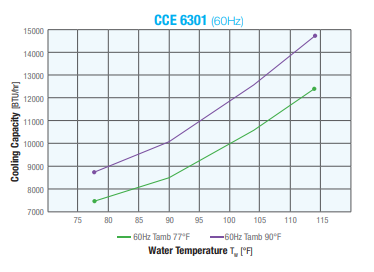

|*Water @ 64°F CWS / 90°F Ambient / 60Hz|
Subject to technical amendments and misprints.
