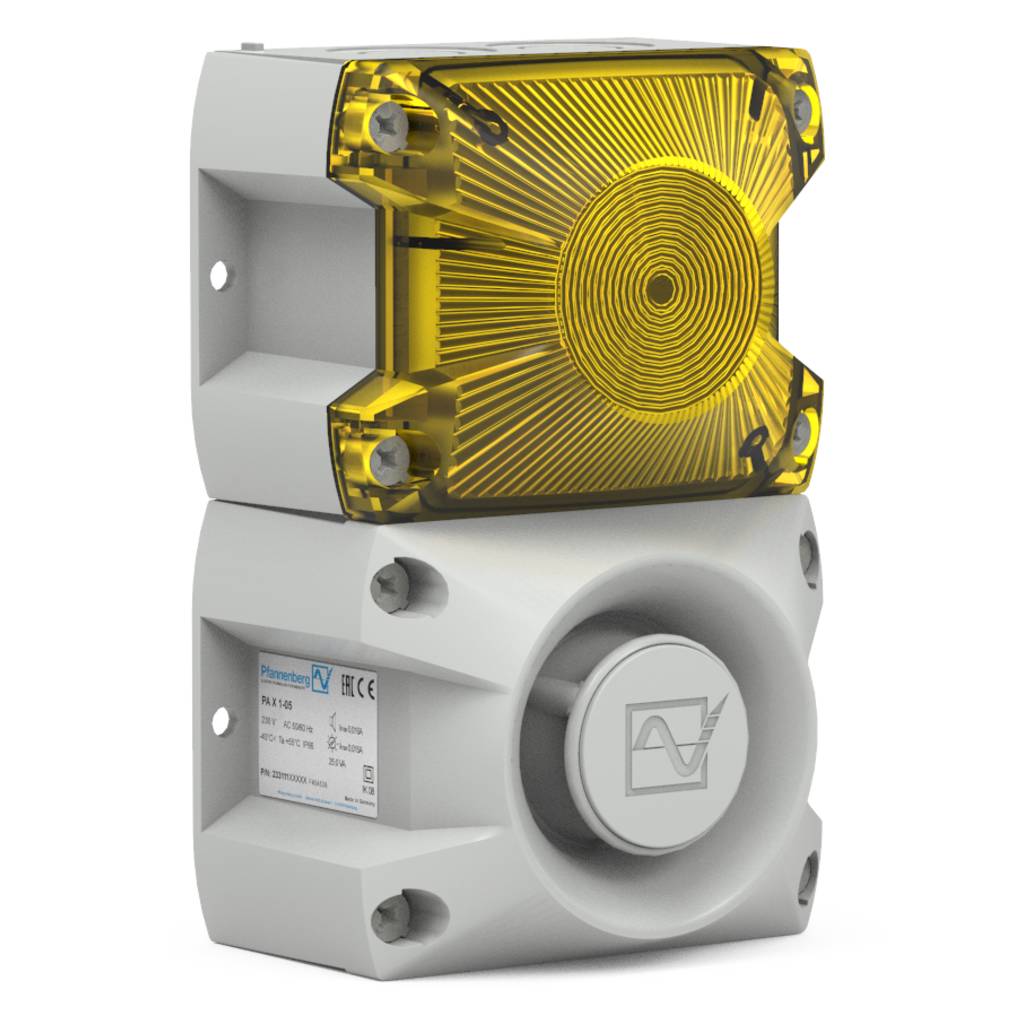

PA L 1
Multifunction Sounder/Light Combination
Max. 105 dB(A) / 76 cd
Our PA L 1 (UL Type 4/4x, IP 66) is a compact multi-function sounder/light combination with most flexible, ultra-bright LED technology. Select your signaling mode (Steady-On/Blinking/Flashing), light frequency (Blink/Flash per Minute) and color with this flexible PYRA LED Light / PA 1 Sounder combination.
Base Color: Available in Red and Grey

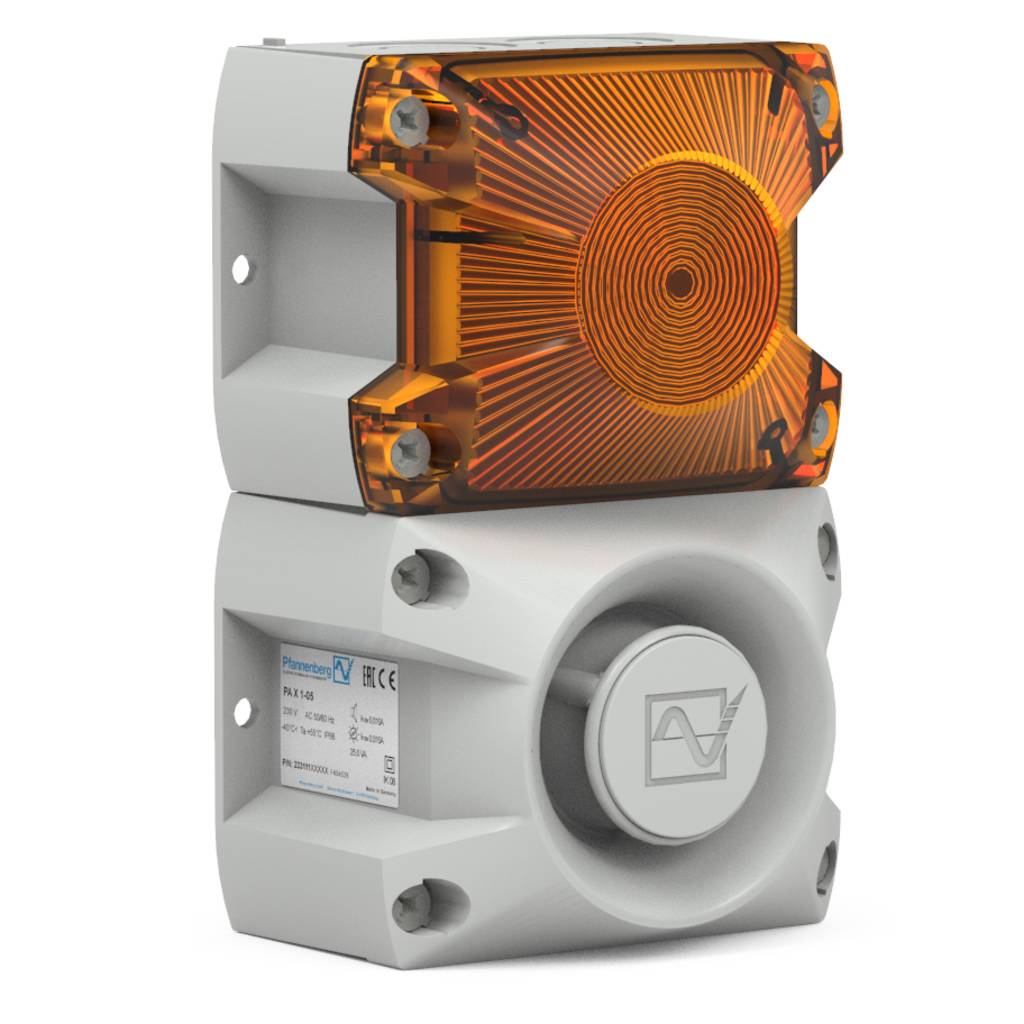

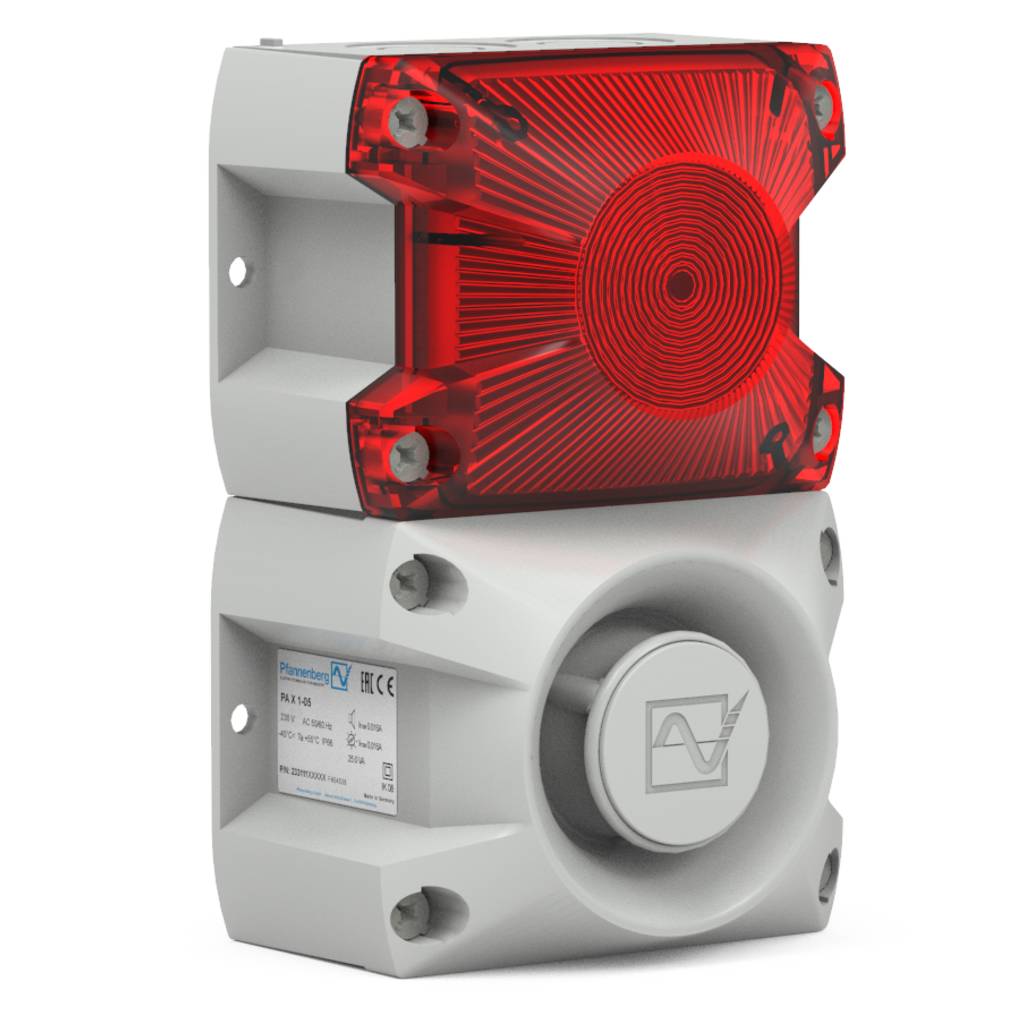

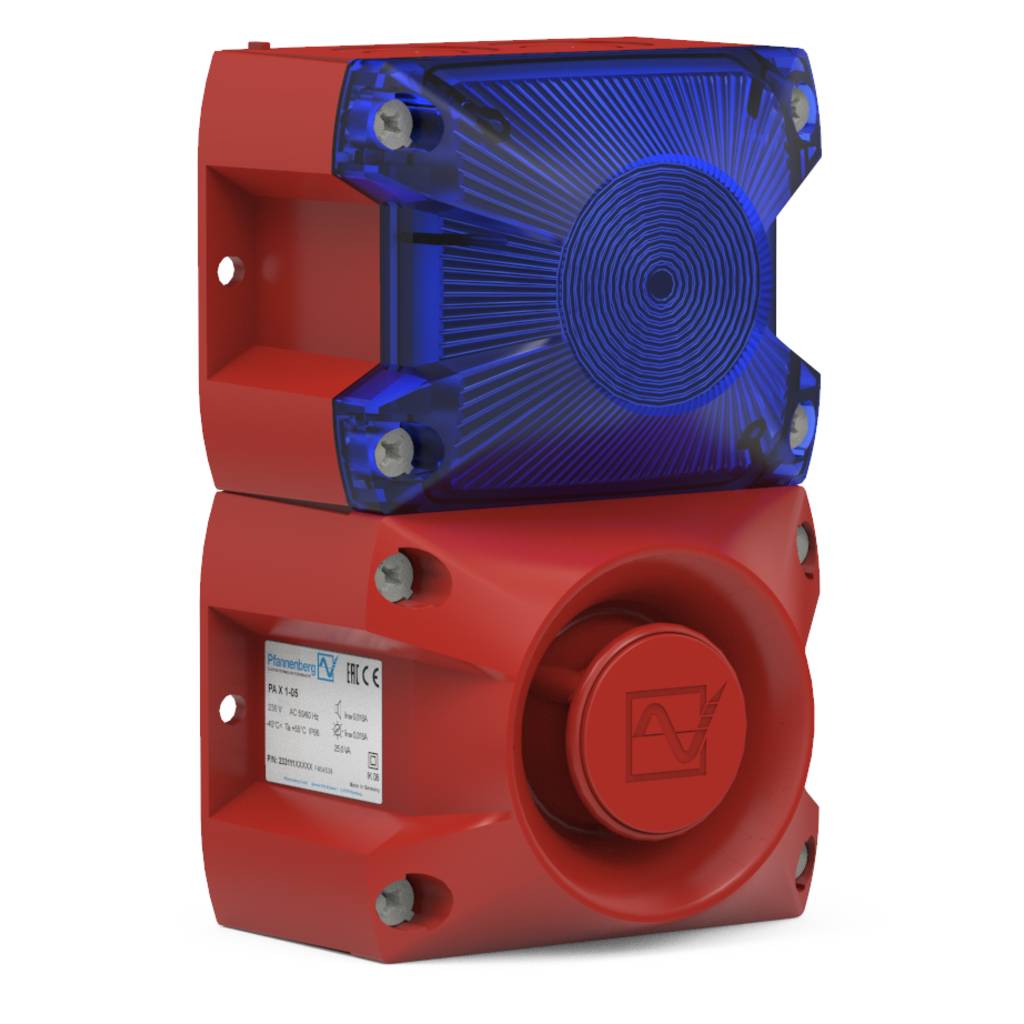

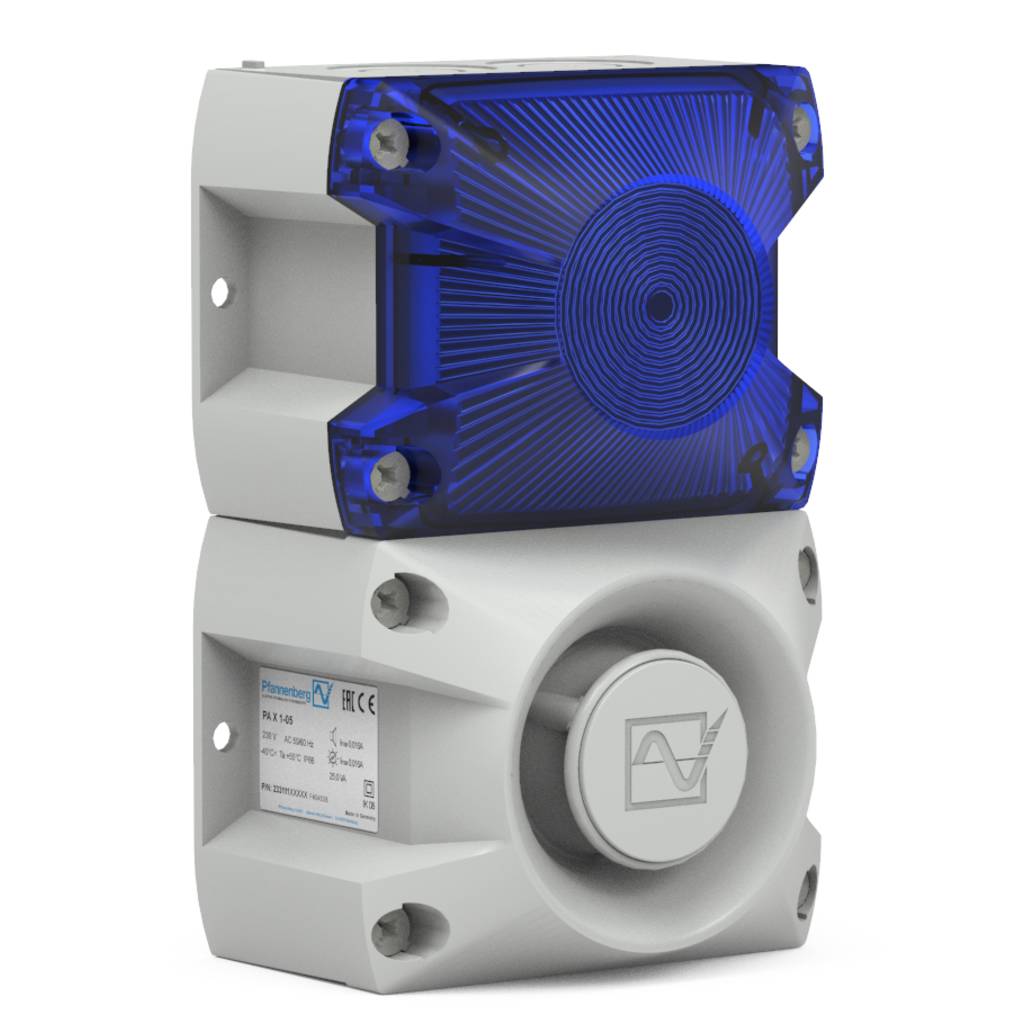

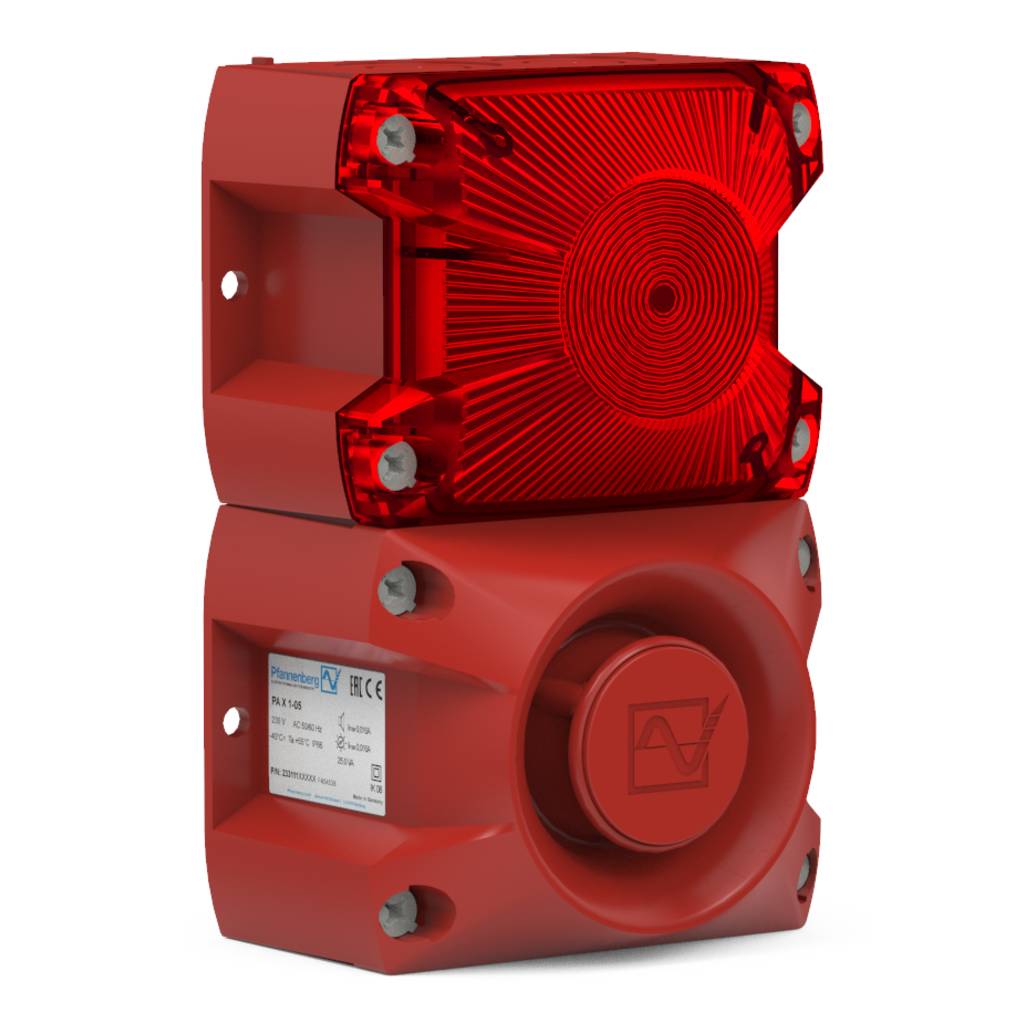

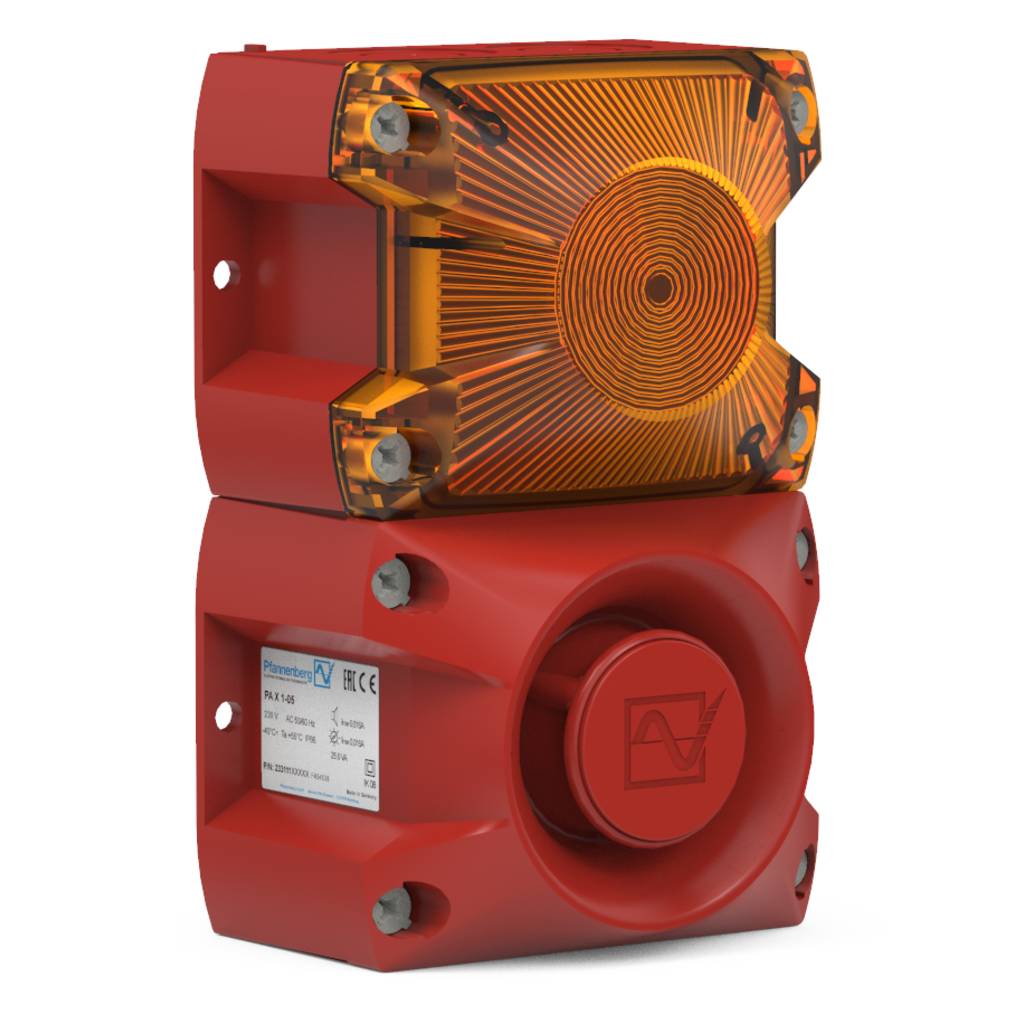

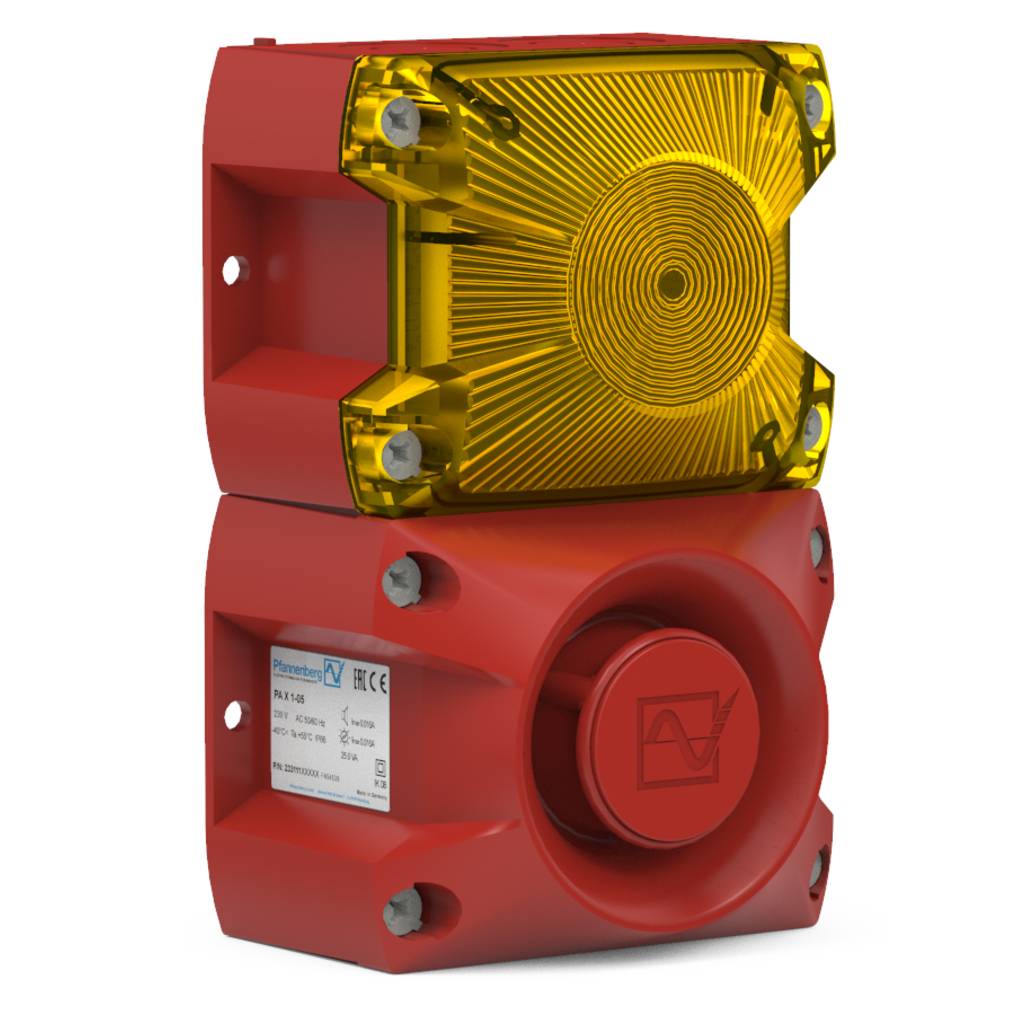

Lens Color: Available in Clear, Yellow, Amber, Red, Green, Blue, or Color Changing LED(RGB)
Std. Voltage Ranges: Available in 10-57VDC, 115VAC, or 230VAC
Watch The Video!
Selectable signaling modes
No matter which signaling mode is required – you are able to choose the one that fits to your needs.
Selectable blink & flash frequencies
Adaptable to all your applications – select the frequency your gadget requires and boost the perceptibility.
Selectable Color (RGB version only)
Not sure about the colour yet? One light for all your needs! PYRA® LED RGB let you choose the color you need. Stay flexible and keep your stock to a minimum!
Safe and easy to install
Various beneficial attributes as e.g. locking elements outside of the sealing or anti-twist protection of the housing parts make an incorrect installation virtually impossible.
PA L 1 has several advantageous characteristics like e.g. captive and in its position fixed locking elements. Therefore it is more than simple to mount and keep the assembly time to a minimum.
Due to an extremely high efficiency and good penetration of acoustical obstacles you can significantly reduce the number of devices.
Technical Data Overview
|PYRA SERIES LED SOUNDER/LIGHT COMBINATION||115 VAC||12-48 V DC|
|PART NUMBER GREY HOUSING RGB (RAL 7035)||23313158055||23313638055|
|PART NUMBER RED HOUSING RED LENS||23313155000||23313635000|
|PART NUMBER GREY HOUSING YELLOW LENS||23313153055||23313633055|
|PART NUMBER GREY HOUSING AMBER LENS||23313154055||23313634055|
|PART NUMBER GREY HOUSING RED LENS||23313155055||23313635055|
|CURRENT CONSUMPTION LIGHT (max)||51 mA @ 115 V AC||120 mA @ 24 V DC|
|CURRENT CONSUMPTION SOUNDER (max)||30 mA @ 115 V AC||70 mA @ 24 V DC|
|MAX SOUND LEVEL||105 dB (A) @ 1m|
|VOLUME CONTROL||max. -12 dB|
|LIGHT SOURCE||one high output LED per single unit|
|LIGHT INTENSITY (DIN 5037)||76 cd (reducible) per single unit|
|MAX VIEWING DISTANCE||202 m|
|OPERATING TEMPERATURE||- 40 ... +55 °C|
|STORAE TEMPERATURE||- 40 ... +70 °C|
|DEGREE OF PROTECTION||IP 66 (EN 60529), NEMA TYPE 4/4x, IK 08 (EN 50102)|
|SERVICE LIFE OF LIGHT SOURCE||> 50,000 hours|
|CABLE ENTRY||6x M20 pre-embossed|
|CONNECTING TERMINAL||0.14 - 2.5 mm² fine stranded|
|WEIGHT||Max. 670 g|
Subject to technical amendments and misprints.
