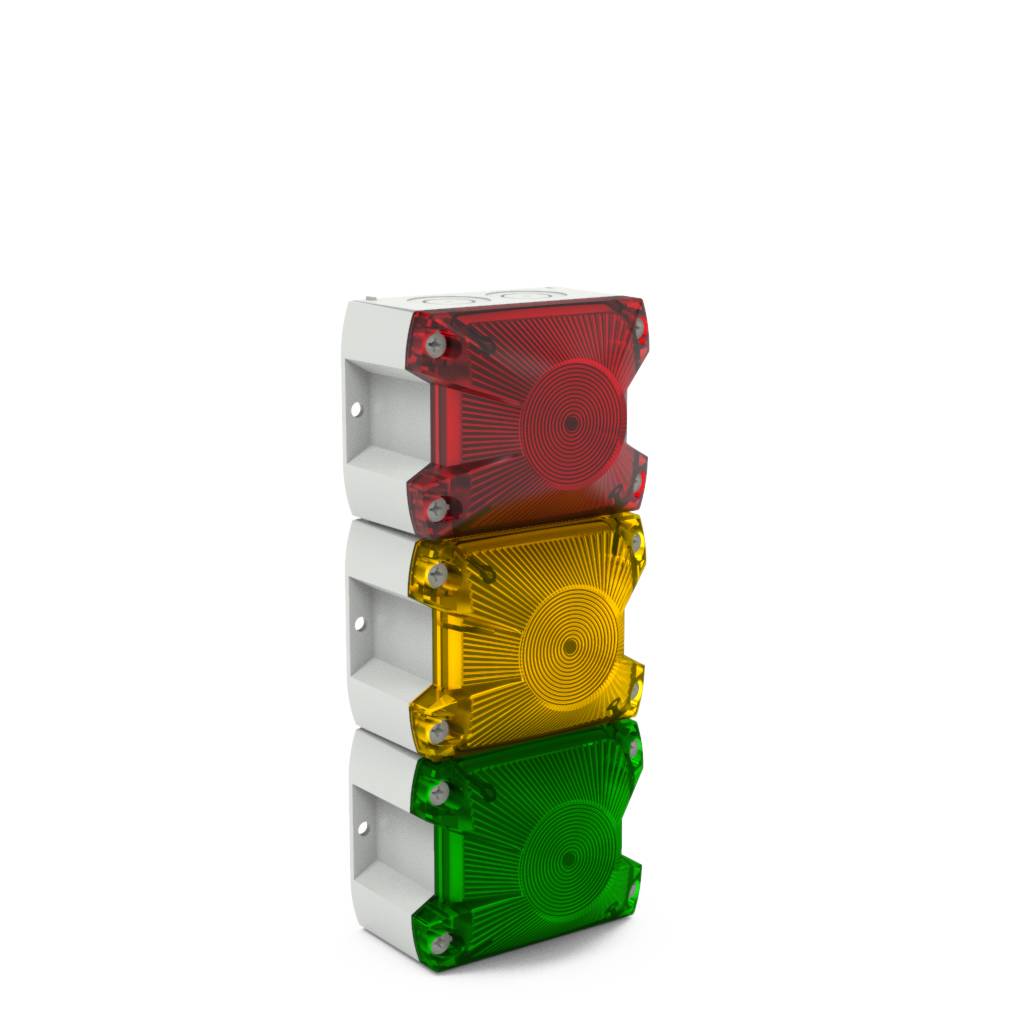

Option 1 – Fully assembled traffic lights
Choose a fully assembled traffic light. All you have to do is to select the combination you require. You can choose between traffic lights with two or three different colours (no sounder).
If you need a more flexible solution and you would like to assemble it individually due to your needs, so please have a look at Option 2 below.

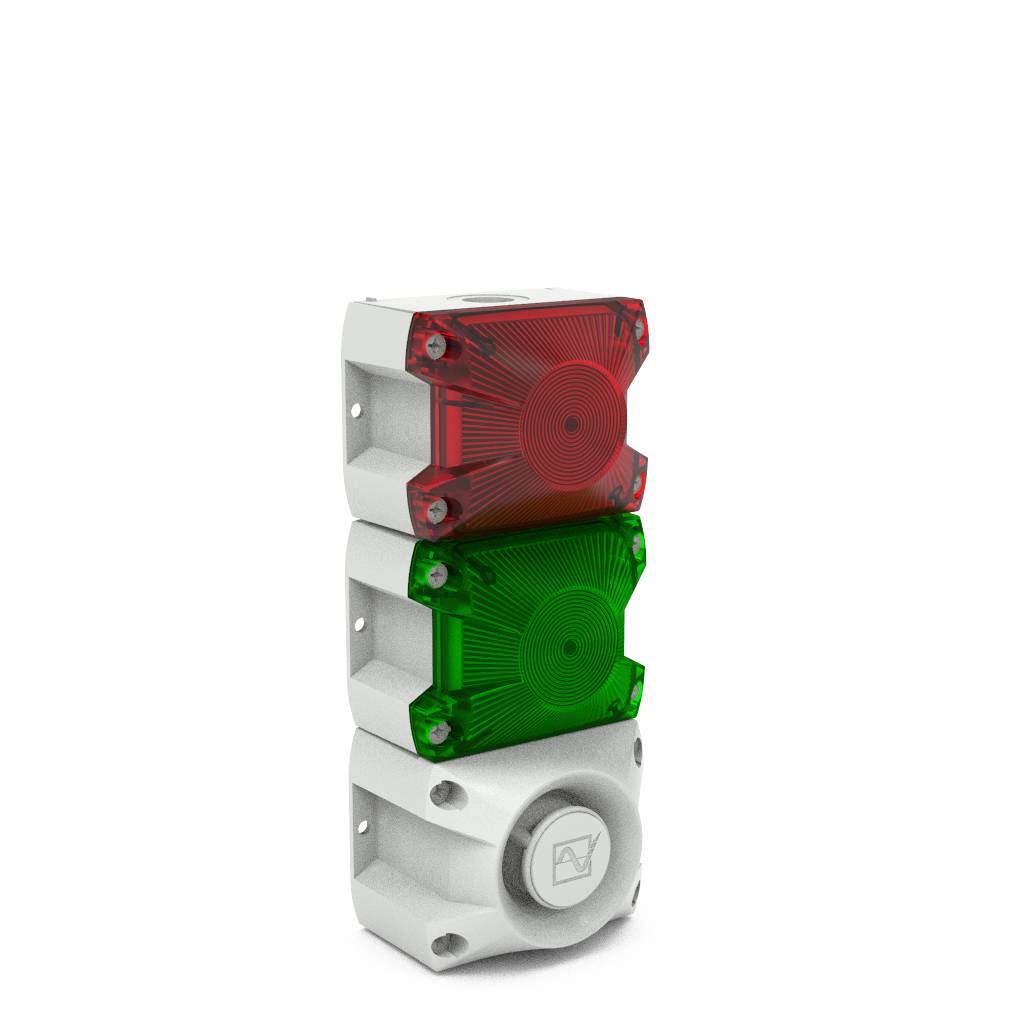

Option 2 – Build your own traffic light
Additional voltages, lens and base colors available. Please click here to contact us for additional options.
Selectable signaling modes
No matter which signaling mode is required – you are able to choose the one that fits to your needs.
Selectable blink & flash frequencies
Adaptable to all your applications – select the frequency your gadget requires and boost the perceptibility.
Base Color: Available in Grey – Lens Color: Available in Yellow, Red and Green
Safe and easy to install
Various beneficial attributes as e.g. locking elements outside of the sealing or anti-twist protection of the housing parts make an incorrect installation virtually impossible.
Several advantageous characteristics like e.g. captive and in its position fixed locking elements. Therefore it is more than simple to mount and keep the assembly time to a minimum.
Due to extremely high efficiency LED Lights and good penetration of acoustical obstacles you can significantly reduce the number of devices.
Technical Data Overview
|PYRA® COMPACT LED TRAFFIC LIGHTS||115/230 VAC||120 DC||12-48 V DC|
|OPTION 1 - PY-L-S-TL: Fully assembled traffic lights with gray bases|

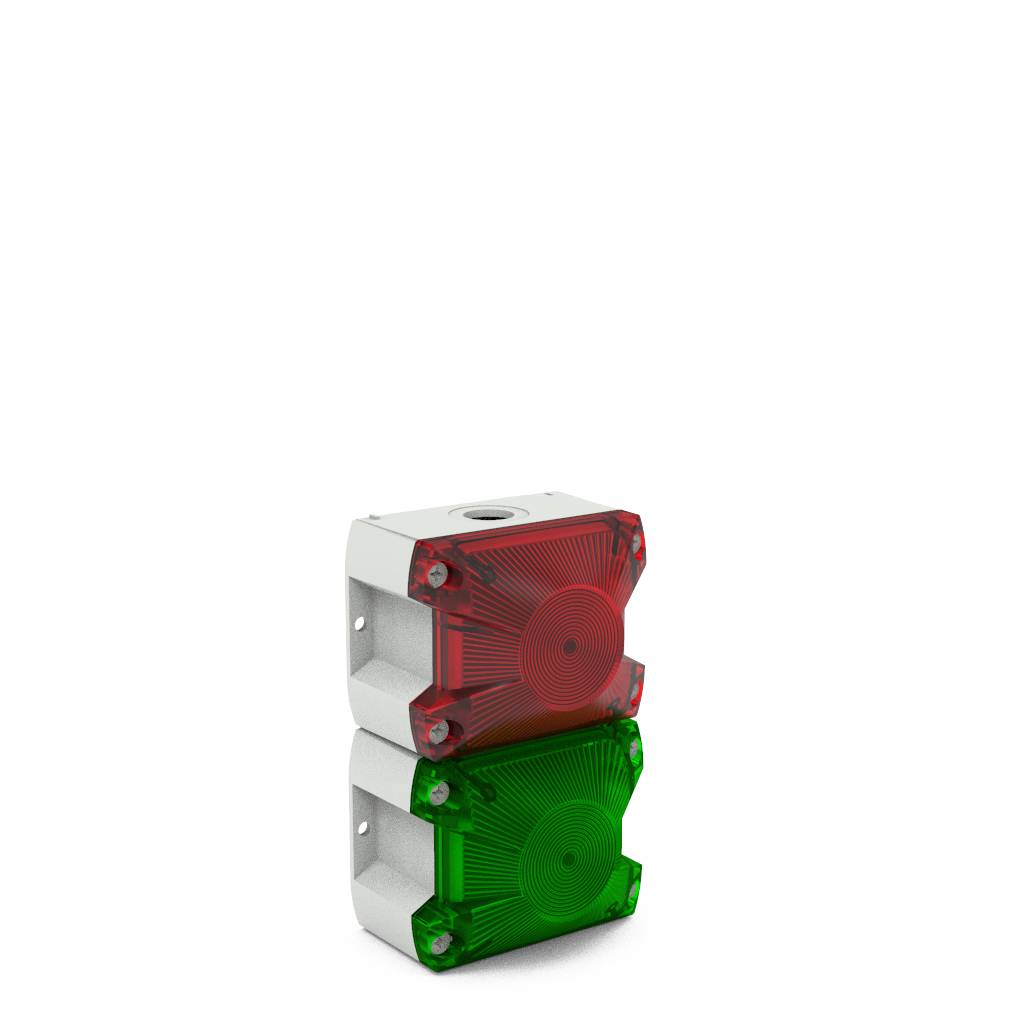

|PART NUMBER RED - GREEN LENSES||21514642055||-||21514812055|
|PART NUMBER RED - YELLOW - GREEN LENSES||21514643055||-||21514813055|
|OPTION 2 - PY-L-S-TLA: Individually composed traffic lights with or without sounder|
|STEP 1: Please choose the base element with the required number of stages
|PART NUMBER 2-STAGES BASE PART||21514002055|
|PART NUMBER 3-STAGES BASE PART||21514003055|

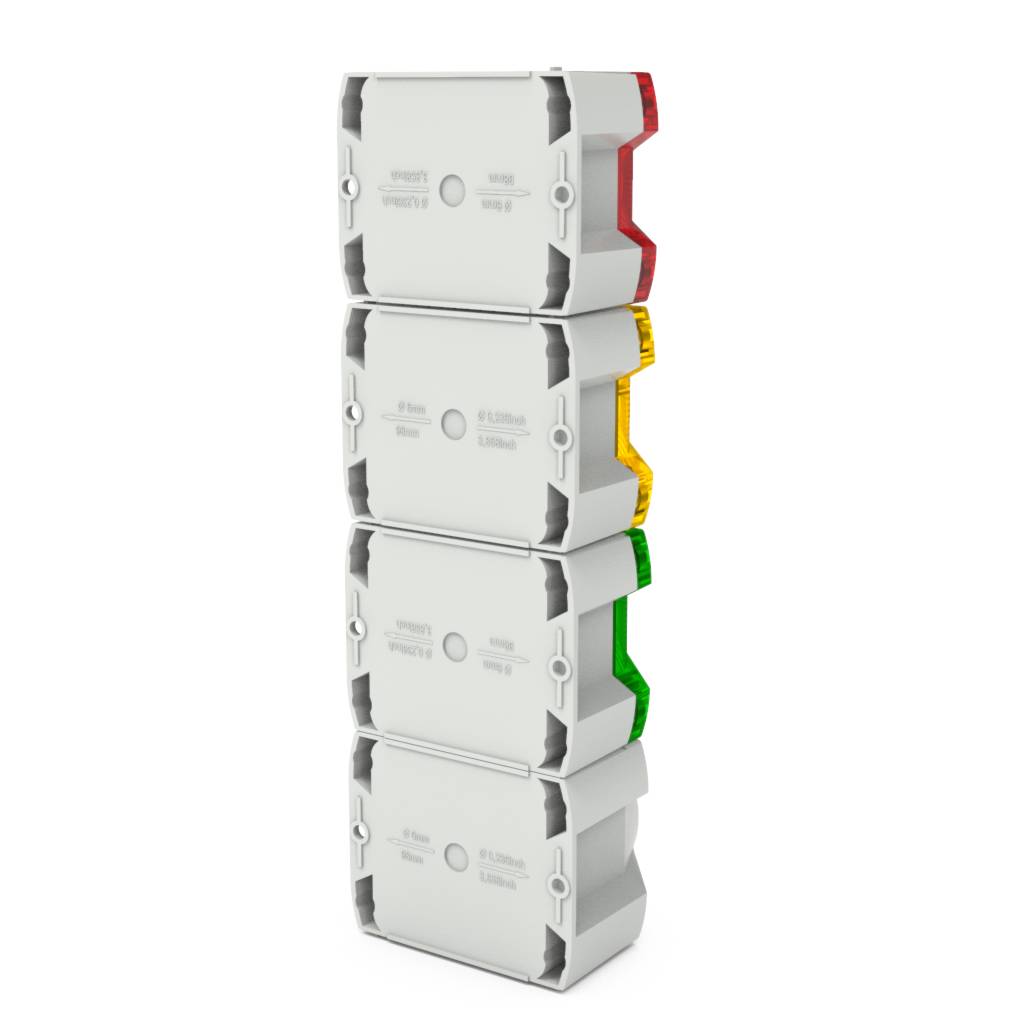

|PART NUMBER 4-STAGES BASE PART||21514004055|
|STEP 2: Select the light and/or sounder inserts (choose all with the same power supply)|
|PART NUMBER YELLOW LIGHT INSERT||21516643000||21516813000|
|PART NUMBER RED LIGHT INSERT||21516645000||21516815000|
|PART NUMBER GREEN LIGHT INSERT||21516646000||21516816000|
|PART NUMBER SOUNDER INSERT||21517150055 (115 V) 21517100055 (230V)||-||21517810055|
|MAX SOUND LEVEL||Option 2: 105 dB (A) @ 1m|
|VOLUME CONTROL||Option 2: max. -12 dB|
|TONES||Option 2: 80|
|LIGHT SOURCE||one high output LED per single unit|
|LIGHT INTENSITY (DIN 5037)||76 cd (reducible) per single unit|
|MAX VIEWING DISTANCE||202 m|
|OPERATING TEMPERATURE||- 40 ... +55 °C|
|STORAE TEMPERATURE||- 40 ... +70 °C|
|DEGREE OF PROTECTION||IP 66 (EN 60529), NEMA TYPE 4/4x, IK 08 (EN 50102)|
|SERVICE LIFE OF LIGHT SOURCE||> 50,000 hours|
|CABLE ENTRY|| 4-stage: 8x M20 pre-embossed
2 and 3-stage: 6x M20 pre-embossed
|CONNECTING TERMINAL||0.14 - 2.5 mm² fine stranded|
|WEIGHT PER STAGE||Weight per stage 265 g per light / max. 405 g sounder|
Datasheets & Downloads
|MODEL 2 LIGHTS NO SOUNDER|
|MODEL 3 LIGHTS NO SOUNDER|
|MODEL 2 LIGHTS 1 SOUNDER|
|MODEL 3 LIGHTS 1 SOUNDER|
