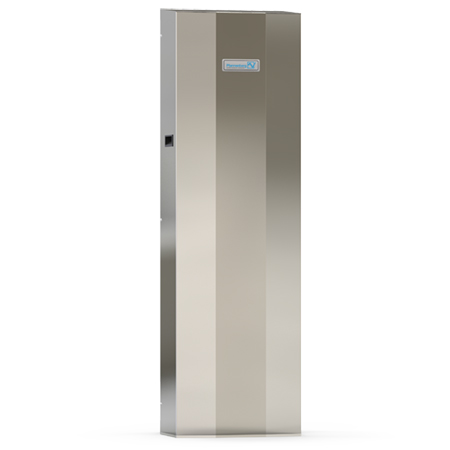

PWS 3502 SS
AIR/WATER HEAT EXCHANGERS
Our PWS 3502 SS (NEMA Type 12/3R/4/4x) Advantage Series Air/Water Heat Exchangers offer over 20000 Btu/h cooling capacity and are ideal for harsh ambient conditions. Requiring only a cool liquid source and power. Need a cool liquid source? Pair this unit with one of our packaged chillers. Housing: stainless steel 304. Cover: stainless steel 304
Washdown Roof Design
Metal covers are designed with a sloped top which sheds water away from the electrical enclosure as well as eliminates potential water pooling, corrosion and ice buildup.
Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.
Long Airflow Path
Heat exchangers are designed to draw hot air from the top of the enclosure and deliver cool air below the components.
Closed Loop Design
Designed to isolate the external ambient air from the internal air circuit eliminating the risk of contaminants entering the cabinet.
Push to Connect Fittings
Hydronic connectors that supports quick connection to 1/2 inch O.D. hose or 1/2 inch I.D. hose with included adapter. Unlike other units that have rigid permanent connections.
Optimized Internal Design
Smart engineered solution, easy to service and maintain.
Intelligent Control of Water Flow
The adjustable mechanical thermostat permits precise control of the electrical enclosure temperature by regulating the coolant flow by activating a solenoid valve. This regulates the coolant flow to minimize coolant waste and increase energy-efficiency.
Physical barriers allow for condensation to be collected and drained from the system with zero intrusion into the cabinet.
Technical Data Overview
|PWS 3502 SS||115 V||230 V|
|POWER CONSUMPTION (W)||215.6||192.5|
|NOMINAL (RUN) CURRENT* (A)||1.89||.982|
|FUSE (max.)** CLASS CC||1A||1A|
|Fluid Connection||1/2"push in fitting||1/2"push in fitting|
|NOISE LEVEL*** dB(A)||<64||<64|
|DRY WEIGHT lb (kg)(without packaging)||73 (33)||73 (33)|
|DIMENSIONS||57.09 in. (1450 mm) h x 15.76 in. (400 mm) w x 8.60 in. (218 mm) d|
How to use this chart:
Example: @ 95°F (ambient, X-axis), @ 95°F (internal, diagonal lines)
= 21496 Btu/h cooling capacity (Y-axis)
|CONTROL RANGE (adjustable)||SC||+ 50°F … + 104°F / + 10°C … + 40°C; factory setting + 95°F / + 35°C|
|RATED FLOW RATE||gpm (L/H)||2 (450)|
|MAXIMUM WATER PRESSURE||PSIG (BAR)||145 (10)|
|PROTECTION SYSTEM ACCORDING TO NEMA TYPE||NEMA Type 12/3R/4/4x(against enclosure when properly installed)|
Subject to technical amendments and misprints.
