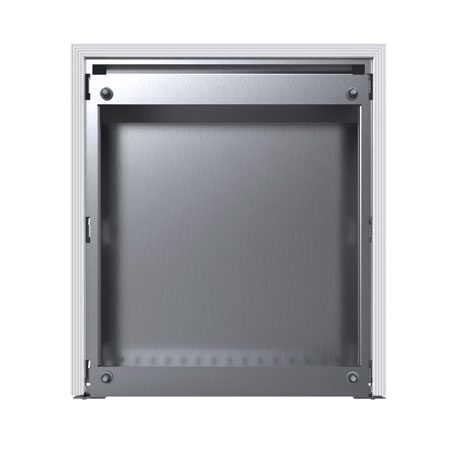

Washdown Sanitary Hood SS

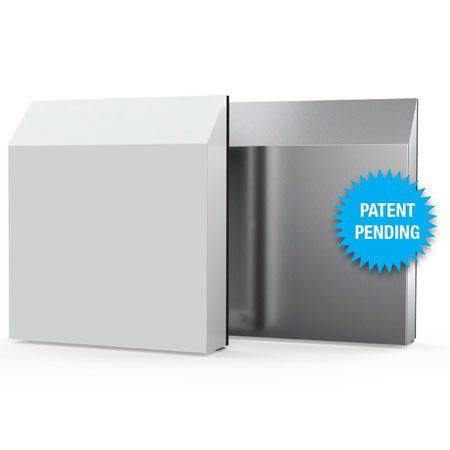

STAINLESS STEEL RAINHOODS
NEMA 4/4X
In addition to our standard painted and stainless steel designs, Pfannenberg also offers a specialty 4X stainless steel rainhood to meet the FDA compatible requirements found in Food & Beverage Manufacturing Facilities.
Technical Data Overview
| MODEL | COLOR | NEMA TYPE | PART NUMBER | DIMENSIONS W x H x D (mm) |
|---|---|---|---|---|
| COMPATIBLE WITH PF 22000 FILTERFANS® AND PFA 20000 EXHAUST FILTERS | ||||
| PF-SH-20000-WD-SS | White FDA Gasket | 4/4X | 18182000026 | 221 x 265 x 102 |
| COMPATIBLE WITH PF 3X000 FILTERFANS® AND PFA 30000 EXHAUST FILTERS | ||||
| PF-SH-30000-WD-SS | White FDA Gasket | 4/4X | 18182000027 | 276 x 322 x 102 |
| COMPATIBLE WITH PF 4XX00 FILTERFANS® AND PFA 60000 EXHAUST FILTERS | ||||
| PF-SH-40000-WD-SS | White FDA Gasket | 4/4X | 18182000028 | 326 x 372 x 102 |
| COMPATIBLE WITH PF 6XX00 FILTERFANS® AND PFA 60000 EXHAUST FILTERS | ||||
| PF-SH-60000-WD-SS | White FDA Gasket | 4/4X | 18182000029 | 394 x 440 x 102 |
Datasheets & Downloads
| TYPE | MANUAL | DRAWINGS | MODEL | |
|---|---|---|---|---|
| WASHDOWN SANITARY HOODS | ||||
| PF-SH-20000-WD-SS | ||||
| PF-SH-30000-WD-SS | ||||
| PF-SH-40000-WD-SS | ||||
| PF-SH-60000-WD-SS | ||||
Subject to technical amendments and misprints.
