PF Series EMC Filterfans & Exhaust Filters

Protect your sensitive electronics from electromagnetic interference when cooling with Filterfans®. The use of a Filterfan® for thermal management requires an opening to be cut into the cabinet. These openings can allow electromagnetic radiation to pass in or out unhindered.

Pfannenberg’s EMC Filterfans® offer the widest range of protection against electromagnetic interference. We offer several combinations of EMC Filterfans® and exhaust filters for air flow rates from 17 to 560 CFM2.

To better protect the environment, our EMC Filterfans® and exhaust filters do not use metalized plastics, because these are difficult to recycle.

EMC – Electromagnetic Compatibility

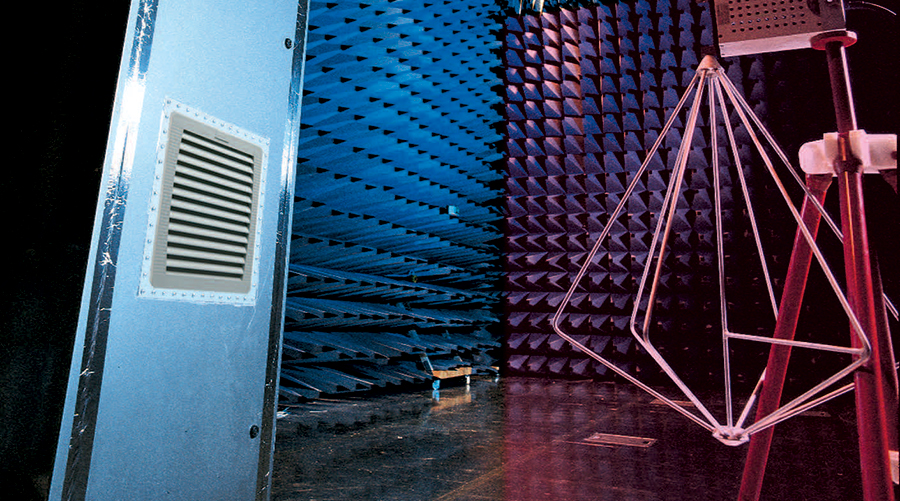

In standards, electromagnetic compatibility, or ‘EMC’ for short, is defined as the ability of a component, device or system to function satisfactorily under the influence of electromagnetic fields in its surroundings, without influencing its surroundings, to which other electrical equipment also belongs, in an impermissible way. We guarantee that our EMC shielded Filterfans® provide protection against electromagnetic interference by ensuring continuity between the shielding part of the fan and the metal structure of the cabinet based on the attenuation characteristics below:

Attenuation at 30 MHz approx. 71 dB
Attenuation at 400 MHz approx. 57 dB
Measured in accordance with EN 50 147-1 (1996): absorber rooms, part 1, measurement of screening attenuation.

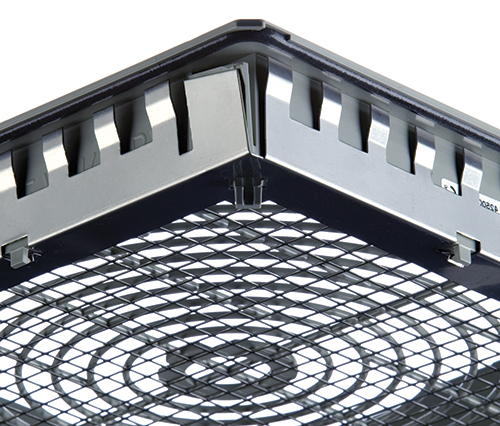

Superior Metal Shielding

Unequaled worldwide: contact surfaces without beryllium-copper seal!


No elaborate reworking of the cut-out

• No adhering of copper tape or similar aids
• No time-consuming scratching off of coatings in order to ensure a good contact

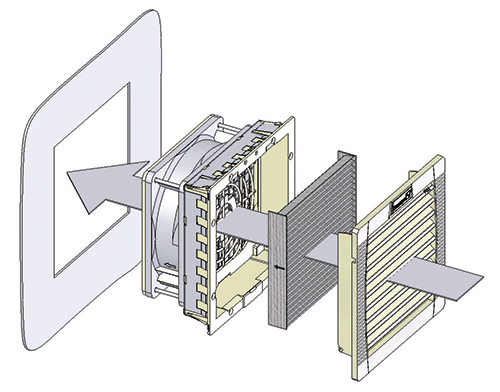

• Contact is made via the cut edge of the cut-out for the Filterfans® or exhaust filter

Pfannenberg’s EMC Filterfans and Exhaust Filters

TYPEPART NUMBER (115 V, Lt. Grey)REPLACEMENT FILTERMATAIR FLOW RATE CMF2 (Type 12 / IP 54)AIR FLOW RATE CMF2 (Type 12 / IP 55)RATED VOLTAGECUT OUT DIMENSIONS (HxW)3 in (mm)APPROVALS
PF SERIES EMC FILTERFANS 4.0
PF 11000 EMC118111510551861160002917-115V, 230V, 24 VDC3.66 x 3.66 (93x93)
PF 22000 EMC1182215305518611600034-38115V, 230V, 24 VDC4.96 x 4.96 (126 x 126)
PF 32000 EMC1183215305518611600035-65115V, 230V, 24 VDC7.01 x 7.01 (178 x 178)
PF 42500 EMC1184215305518611600036-94115V, 230V, 24 VDC8.82 x 8.82 (224x224)
PF 43000 EMC1184315305518611600036-155115V, 230V, 24 VDC8.82 x 8.82 (224 x 224)
PF 65000 EMC1186515305518611600037-297115V, 230V11.50 x 11.50 (292 x 292)
PF 66000 EMC1186615305518611600037-462115V, 230V11.50 x 11.50 (292 x 292)
PF 67000 EMC1186715305518611600037-560115V, 230V, 400/460 V11.50 x 11.50 (292 x 292)
PF SERIES EMC EXHAUST FILTERS
PFA 10000 EMC1191000105518611600029N/AN/AN/A3.66 x 3.66 (93 x 93)UL, cUL, CE, (on request: GOST)
PFA 20000 EMC11920003055186116000344.96 x 4.96 (126 x 126)
PFA 30000 EMC11930003055186116000357.01 x 7.01 (178 x 178)
PFA 40000 EMC11940003055186116000368.82 x 8.82 (224 x 224)
PFA 60000 EMC119600030551861160003711.50 x 11.50 (292 x 292)
*Please consult factory for additional options and part numbers
