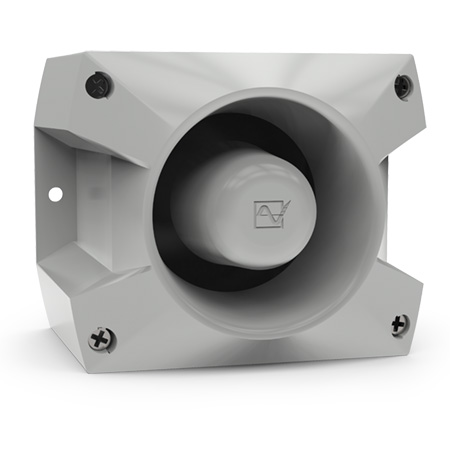

PA 5
PATROL Series Sounders
107 dB (A) – 80 Tones – 4 Stages

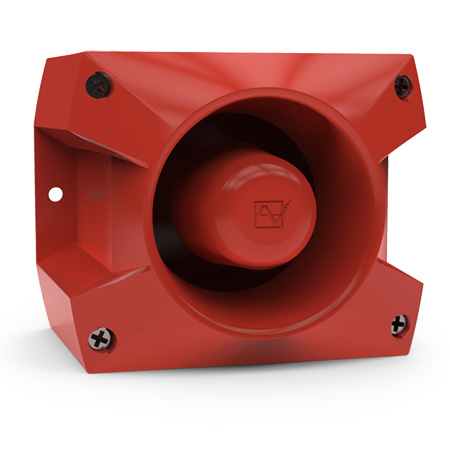

Our PA 5 (UL Type 4/4x, IP 66) PATROL Series Sounders reach a 107 dB (A) nominal sound pressure Level and offers 80 alarm tones – based on alarm circumstance – with 4 stages. This Signaling Device operates in any climate and can be surface or flush-panel mounted. Color: Available in Grey or Red Housing. 10-Year Warranty
Product Overview
- 107 dB (A) nominal sound pressure level
- 80 alarm tones with 4 stages
- Emit different tones based on alarm circumstances
- Internal volume control
- Polycarbonate/ABS blend housing
- UL Type 4/4X, IP 66 ingress protection
- 5.3 inch (135 mm) h x 6.4 inch (163 mm) w x 5.2 inch (132 mm) d
- Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3
- 4 Pin M-12 Optional Connector Available
Additional voltages and colors available. Please click here to contact us for additional options
Features
Captive Fastener
Installation and assembly is simplified and screws cannot get lost.
Impact-proof housing
Achieves IK08 impact rating to endure harsh environments.
Shape-molded gasket
Stays in-place and cannot get lost.
Selectable audible notification
Choice of 80 unique alarm tones with four stages of tone control for distinctive signaling of specific events.
Electromagnetic sound capsule technology
Acoustic signal includes a share of low frequency side bands for excellent sound penetration of walls and doors for highly effective alarming.
Intelligent Installation
Electrical wiring is conducted in the base box to avoid a 3-hand assembly. Wires are safely routed where the potential for pinching and errors are eliminated.
Plug and socket connections
Upper and lower parts combine positively to simplify installation. When separated, electrical hazards are eliminated for handling.
Technical Data Overview
PATROL SERIES SOUNDERS PA 5 | 104 to 126 VAC |
---|---|
PART NUMBER SURFACE MOUNT GREY HOUSING (RAL 7035) | 23350150055 |
SOUND PRESSURE LEVEL | 107 dB (A) |
SOUND LEVEL REDUCTION | max. -16 dB via potentiometer |
ALARM TONES | 80 / 4 tones are externally selectable |
OPERATING TEMPERATURE | -40 ... +55 °C |
PROTECTION SYSTEM (According to EN 60529) | IP 66 |
APPROVALS | EN54-3 / VdS / UL / EAC / RS option: GL / MED / CNBOP |
W x H x D (mm) | 163.4 x 135 x 132 |
Accessories
PA 5 ACCESSORIES | |
---|---|
SURFACE MOUNT GASKET | 28300000005 |
ENCLOSURE COUPLER | 28300000003 |
PANEL MOUNT KIT | 28300000008 |
TAMPER-PROOF PLUGS | 28300000002 |
*Contact Factory for prices |
Subject to technical amendments and misprints.
