FILTERFANS 4.0 ™
Airflow rate up to 94 CFM

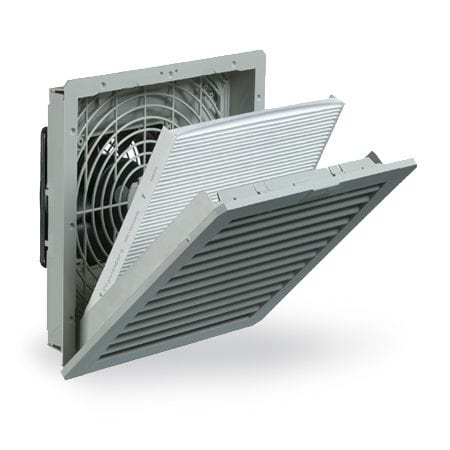

Our PF 42500 (NEMA Type 12) Filterfans 4.0™ reach a particularly high airflow and at the same time provide an IP 55, Type 12 system of protection with our flow optimized fins and rotor blades. The fluted filter mat’s folded structure provides an unrivalled airflow guaranteeing Type 12 protection, while also extending the filters lifetime 300% longer than conventional filter media. Color: RAL 7035 (light grey); also available in RAL 9011 (black)
NEMA Type 12 Protection
The closed frame design prevents unfiltered air from penetrating the cabinet.
Patented Tool-Less 4 Corner Fastening System
The patented fastening system allows for fast installation (possible to install in seconds) and easy removal reducing MTTR.
Highest Quality Fans
German manufactured fans that exceed industry standards for quality, performance and service life.
Highest System Airflow Compared to Competitors Filter Fans
The design of the louvers supports the greatest airflow while further protecting against airborne dust and dirt.
ERP compliant to meet European efficiency directives. Units also comply with additional national and international standards, e.g. TÜV, NEMA, UL, CSA and EAC.
Options including UV Protected Plastic for use in direct sunlight, EMC shielding to attenuate RF signals and exhausting fans for custom applications.
Aesthetically Pleasing Design Using Neutral Colors
Available in a standard RAL 7035 Grey and an optional Black color. These units blend in well with the modern styles and colors used for existing machines and systems.
Technical Data Overview
|PF 42500 FILTERFANS®|
|AVAILABLE VOLTAGES ± 10%||115 V||230 V||24 VDC|
|DESIGN (housing and |
|self-extinguishing, UL 94 VO injection-molded thermoplastic|
|SERVICE LIFE L10 (+ 40 °C)||42,500 h||40,000 h||70,000 h|
|COLOR||RAL 7035 (Lt. Grey) RAL 9011 (Black)|
|NOISE LEVEL (EN ISO 3741)||43 dB (A)|
|CONNECTION TYPE||spring-type terminal|
|BEARING TYPE||ball bearing|
|APPROVALS||UL, cUL, CE (on request: GOST)|
|POWER CONSUMPTION (W)||17 W||17 W||4.7 W (DC)|
|W x H x D (in)||9.92 x 9.92 x 4.05|
|CUT-OUT DIMENSIONS (mm)||223 x 223|
|SYSTEM OF PROTECTION|
|System of protection (UL 50)||NEMA Type 12 - fluted filter|
|FILTER MAT QUALITY CLASS||G 4|
|UNIMPEDED AIRFLOW||94 CFM|
|AIRFLOW RATE IN COMBINATION (PF + PFA 40.000)||74 CFM|
|Used With PF 42500/43000, PFA 40000||Part No.||Description||Size|
|18611600036||PF/PFA 4xxxx - 5 Pack||8.35 in X 7.87 in X .67 in (212mm X 200mm X 17mm)
Subject to technical amendments and misprints.
